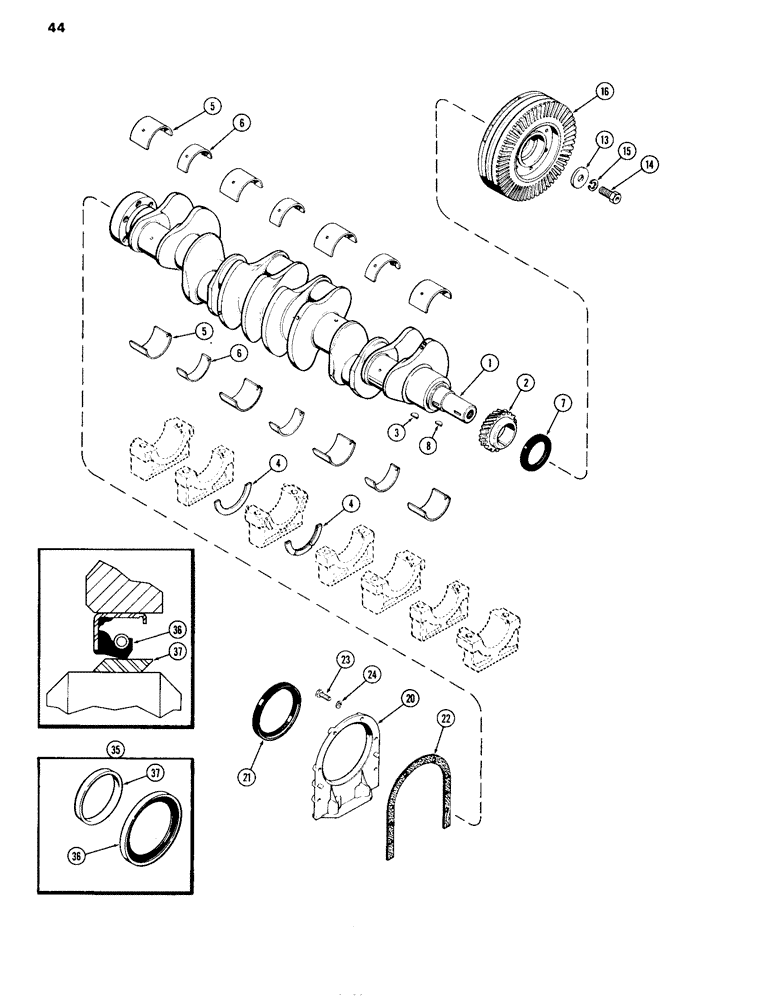

Запчасти Case IH 504D (044) - ENGINE LESS FUEL DEVICE, 504D NATURALLY ASPIRATED ENGINES, B WITH WIDE MAIN BEARINGS (10) - ENGINE

1

A66728

CRANKSHAFT

ASSY. - engine

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, crankshaft (Std.)(0.156")

2шт.

4

A42447

WASHER

- thrust, crankshaft (oversize)(0.162")

2шт.

5

A43090

BEARING LINER

LINER KIT - main bearing, wide (Std.)

4шт.

5

A43124

LINING

LINER KIT - main bearing, wide (-0.002")

4шт.

5

A43125

CRANKSHAFT BEARING

LINER KIT - main bearing, wide (-0.010")

4шт.

5

A43126

LINING

LINER KIT - main bearing, wide (-0.020")

4шт.

5

A43127

LINING

LINER KIT - main bearing, wide (-0.030")

4шт.

6

A43089

BEARING LINER

LINER KIT - main bearing, narrow (Std.)

3шт.

6

A43120

LINING

LINER KIT - main bearing, narrow (-0.002")

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER KIT - main bearing, narrow (-0.010")

3шт.

6

A43122

LINING

LINER KIT - main bearing, narrow (-0.020")

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER KIT - main bearing, narrow (-0.030")

3шт.

7

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 15/32"

1шт.

8

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

A65125

PULLEY

- fan drive

1шт.

20

A57457

RETAINER

- crankshaft rear seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear, 4-3/4 x 5-3/4 x 1/2"

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

35

A43194

KIT

- crankshaft wear seal

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear

1шт.
