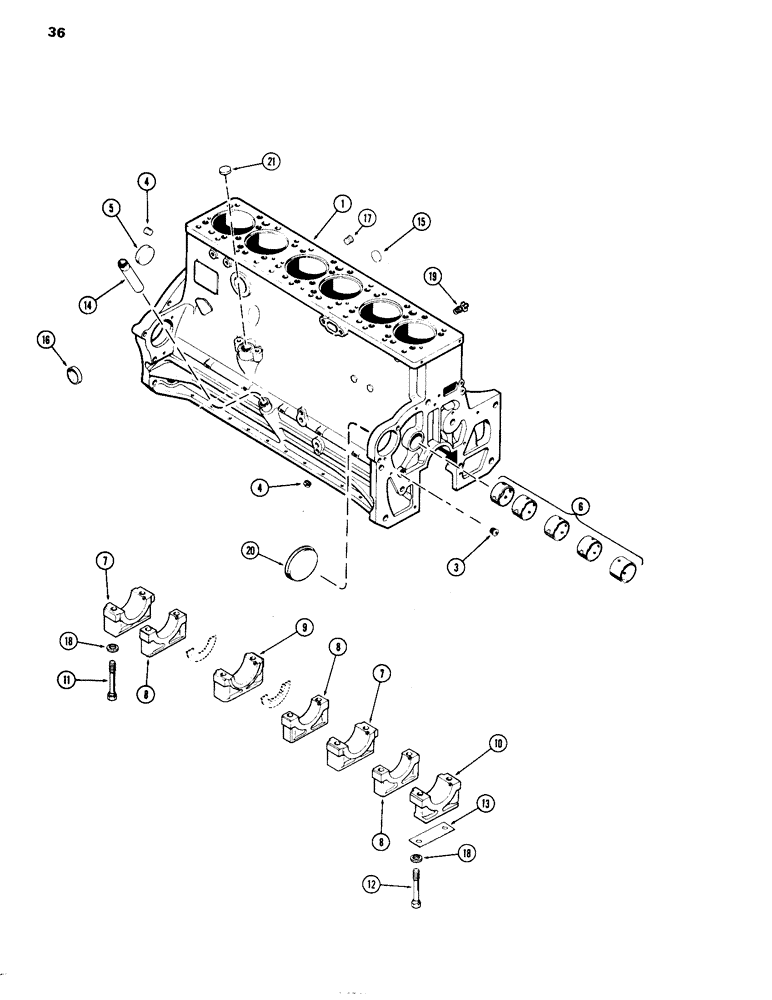

Запчасти Case IH 504D (036) - ENGINE LESS FUEL DEVICE, 504D NATURALLY ASPIRATED ENGINES, B WITH WIDE MAIN BEARINGS (10) - ENGINE

A44099

ENGINE ASSEMBLY

BLOCK ASSY. - short (See Note)

1шт.

1

A46000

SKELETON ENGINE

BLOCK ASSY. - stripped

1шт.

3

221-1843

PLUG

- pipe, 3/8" hex. sckt. hd. (oil gallery)

4шт.

4

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/8" sltd. hdless. (oil gallery)

6шт.

5

A24361

PLUG

- cup, 2-3/8" (camshaft hole)

1шт.

6

A23544

BUSHING

KIT - camshaft

1шт.

7

A58562

CAP

- main bearing, wide

2шт.

8

A58563

CAP

- main bearing, narrow

3шт.

9

A58564

CAP

- main bearing, thrust

1шт.

10

A58561

CAP

- main bearing, front

1шт.

11

A66948

STEP BOLT

BOLT - 5/8 x 5" N.C. hex., special

12шт.

12

A66949

STEP BOLT

BOLT - 5/8 x 7-1/4" N.C. hex., special

2шт.

13

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

14

A34540

TUBE

- oil filler

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8"

3шт.

16

A58569

PLUG,Cup, 2", Stainless

- cup, 2"

1шт.

17

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" hex. sckt. hd.

1шт.

18

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8"

14шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

41-1052

PLUG,Cup, 3 1/4"

- cup, 3-1/4"

1шт.

21

41-22

PLUG

- cup, 1-3/8" (tach. drive hole)

1шт.
