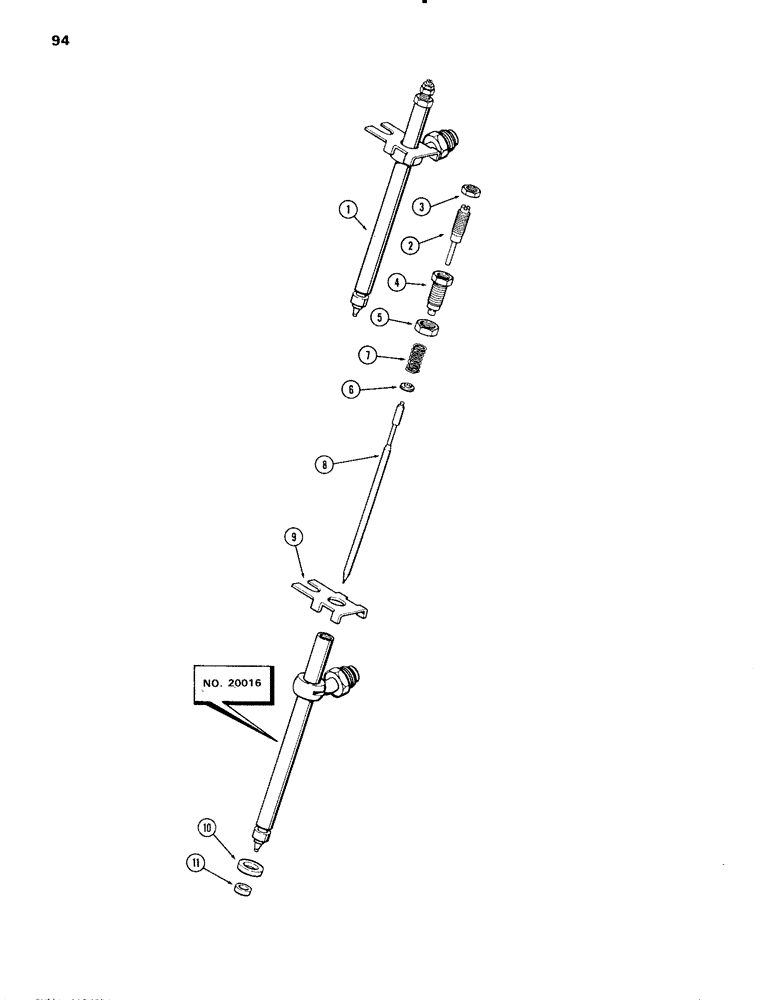

Запчасти Case IH 504BDT (094) - FUEL INJECTION NOZZLE, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINE W/OIL COOLED PISTONS, C (03) - FUEL SYSTEM

1

A76193

NUT

NOZZLE ASSY. - fuel injection (Supplier's # 20016 stamped on body, coded red white)

6шт.

Whenever nozzle is removed from the head, the seal Ref, 11 and washer Ref. 10, must be replaced with new ones before nozzle is installed back into the head.

1шт.

A138323R

REMAN-INJECT NOZZLE

504BDT CASE DIESEL ENGINE & POWER UNIT (SIZE 111), Reman for new PN A76193

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- #10 N.F. hex. lock, lift adjusting

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- 5/16 N.F. hex. lock, pressure adjusting

1шт.

6

A44369

SEAT

- spring

1шт.

7

A43601

SPRING

- pressure adjusting (Color code brown)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
