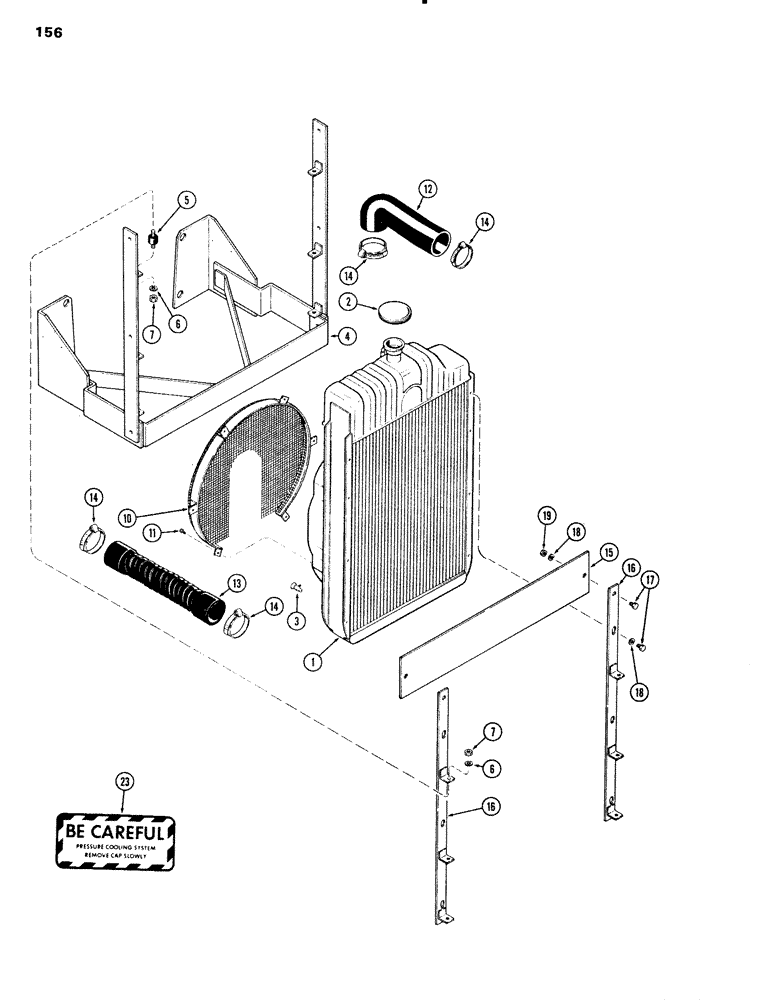

Запчасти Case IH 504BDT (156) - COOLING SYSTEM, TURBOCHARGED ENGINES, B, C (02) - ENGINE

1

A50914

RADIATOR (ALL Columns)

1шт.

2

A66117

CAP

- radiator (All Columns)

1шт.

3

A27862

COCK, DRAIN

VALVE - radiator drain (All Columns)

1шт.

4

A64624

SUPPORT - radiator (All Columns)

1шт.

5

L11236

BOLT

BOLT - radiator shock mount (All Columns)

6шт.

6

92-5

LOCK WASHER,5/16"

(All Columns) 5/16"

12шт.

7

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex. (All Columns)

12шт.

10

A50915

GUARD - fan (Qty: C - 1)

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Qty: C - 6) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

12

A66120

HOSE

- radiator, upper (All Columns)

1шт.

13

A64961

HOSE

- radiator, lower (All Columns)

1шт.

14

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4" (All columns)

4шт.

15

A64673

BRAFFLE - radiator top (All columns)

1шт.

16

A64671

BRACKET - radiator mounting (All Columns)

2шт.

17

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex. (All Columns)

8шт.

18

192-46

LOCK WASHER,3/8"

WASHER, LOCK, (All Columns) 3/8"

8шт.

19

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex. (All Columns)

2шт.

23

321-122

DECAL

- pressure cooling system (All Columns)

1шт.
