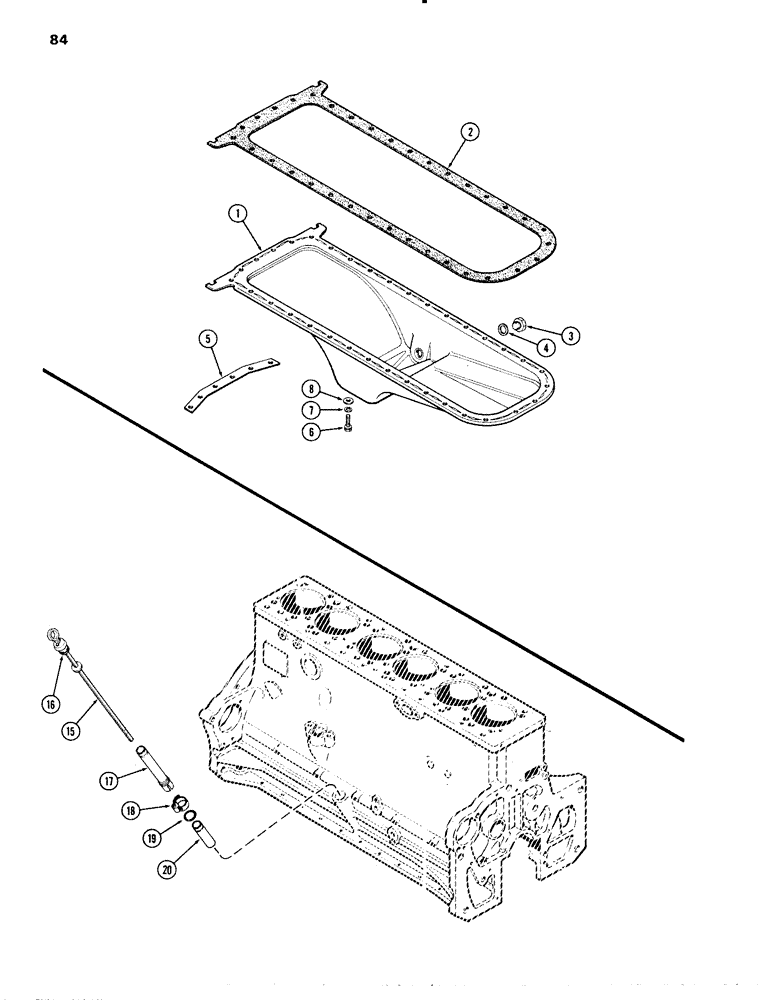

Запчасти Case IH 504BDT (084) - OIL PAN & DIPSTICK, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES W/OIL COOLED PISTIONS, C (02) - ENGINE

1

A66126

SUMP

PAN - oil (Replaces A75291)

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Page 111)

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- Oil pan drain plug

1шт.

4

A58933

OIL PAN GASKET SET

- oil pan drain plug

1шт.

5

A65999

STRAP

- oil pan reinforecement

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

32шт.

7

92-6

LOCK WASHER,3/8"

32шт.

8

195-25

WASHER,3/8"

32шт.

15

A75307

DIPSTICK

ASSY. - oil level

1шт.

16

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 x 1 x 1/8"

2шт.

17

A65778

TUBE

- oil filler extension

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube, 1-3/16 to 1-3/4"

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - 1-1/8 x 1-3/8 x 1/8"

1шт.

20

A34540

TUBE

- oil filler

1шт.
