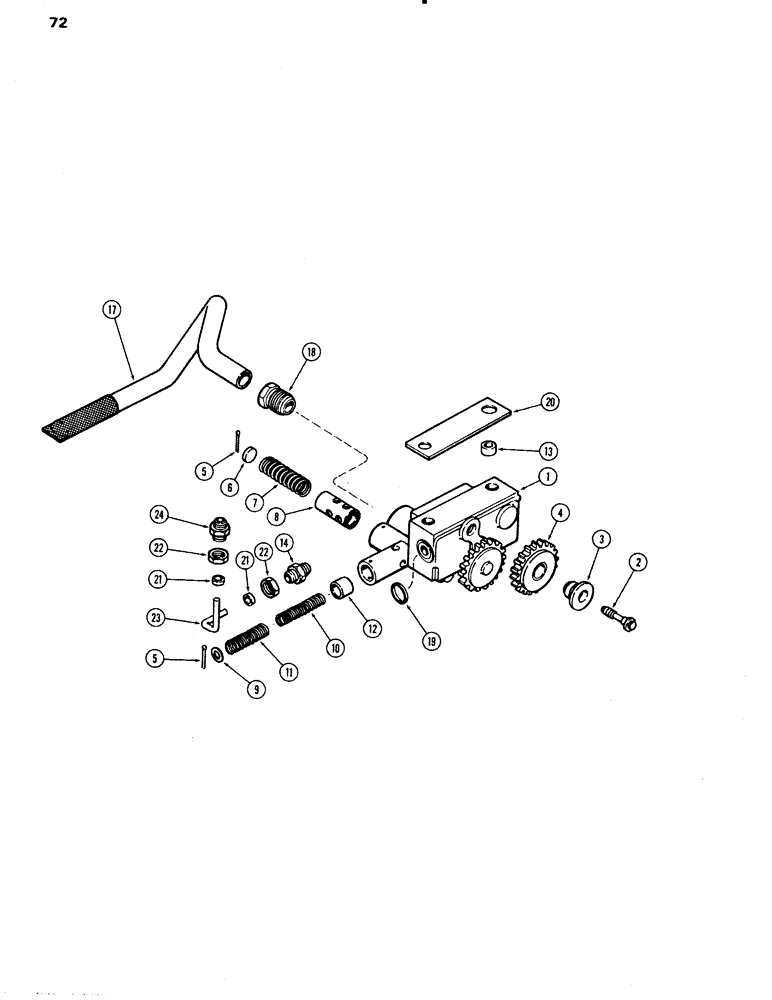

Запчасти Case IH 504BDT (072) - OIL PUMP, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES WITH OIL COOLED PISTIONS, C (02) - ENGINE

1

A66002

PUMP

ASSY. - oil

1шт.

2

A63945

12 PT SCREW

BOLT - 3/8" - 16 N.C. Ferry cap, L.H.

1шт.

3

A63944

SHAFT

- idler gear

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSY. - idler

1шт.

5

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

6

41-1016

PLUG,Cup, 1"

- 1" cup

1шт.

7

A63949

SPRING

- valve, oil pump

1шт.

8

A75286

VALVE

ASSY. - relief

1шт.

9

195-25

WASHER,3/8"

1шт.

10

A76154

SPRING

- inner, pressure relief

1шт.

11

A76153

SPRING

- outer, pressure relief

1шт.

12

A76152

VALVE

- safety, pressure relief

1шт.

13

A58915

SLEEVE

- pump body

1шт.

14

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex, 1/4" tube x 1/8" P.T.

1шт.

17

A75288

SCREEN

TUBE ASSY. - oil suction, w/screen

1шт.

18

222-510

TUBE NUT,1 1/4"-18

NUT - tube, 1" inverted flare

1шт.

19

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump to block

1шт.

20

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

21

222-153

SLEEVE,1/4" Tube

2шт.

22

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting

2шт.

23

A75290

TUBE

- oil pump gallery sensing

1шт.

24

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex, 1/4" tube x 1/8" P.T., in block

1шт.
