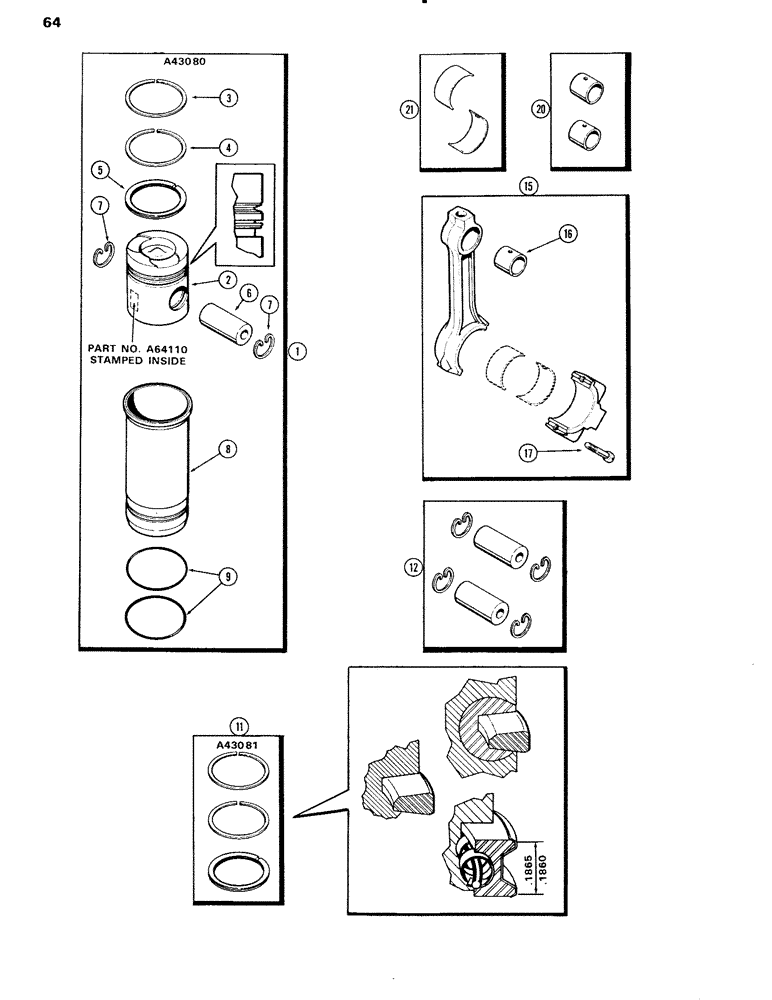

Запчасти Case IH 504BDT (064) - PISTON ASSY & CONNECTING RODS, ENG. L/FUEL DEVICE, 504BDT TURBOCHARGED ENG. W/O OIL COOLED PISONS, B (02) - ENGINE

1

A43080

SLEEVE

PISTON & SLEEVE KIT - (Set of 2)

3шт.

2

A64110

PISTON

- cylinder, 4-5/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref.11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A58585

RING, SNAP

RING - snap, piston pin retaining

4шт.

8

A58570

SLEEVE

- piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - piston sleeve

4шт.

A43082

SET OF RINGS

RING KIT - re-ring (Set of 6)

1шт.

11

A43081

RING

KIT - re-ring (Set of 1)

6шт.

12

A44574

PIN

KIT - w/retaining rings (Set of 2)

3шт.

15

A65032

ROD

ASSY. - connecting

6шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

17

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

20

A41756

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A41758

BEARING LINER

INSERT KIT - connecting rod bearing (Std.)

6шт.

21

A41899

BEARING LINER

INSERT KIT - connecting rod bearing (-.002")

6шт.

21

A41900

BEARING LINER

INSERT KIT - connecting rod bearing (-.10")

6шт.

21

A41901

BEARING LINER

INSERT KIT - connecting rod bearing (-.020")

6шт.

21

A41902

BEARING LINER

INSERT KIT - connecting rod bearing (-.030")

6шт.
