(038) - CAMSHAFT, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES WITH OIL COOLED PISTONS, C

Запчасти Case IH 504BDT (038) - CAMSHAFT, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES WITH OIL COOLED PISTONS, C (02) - ENGINE

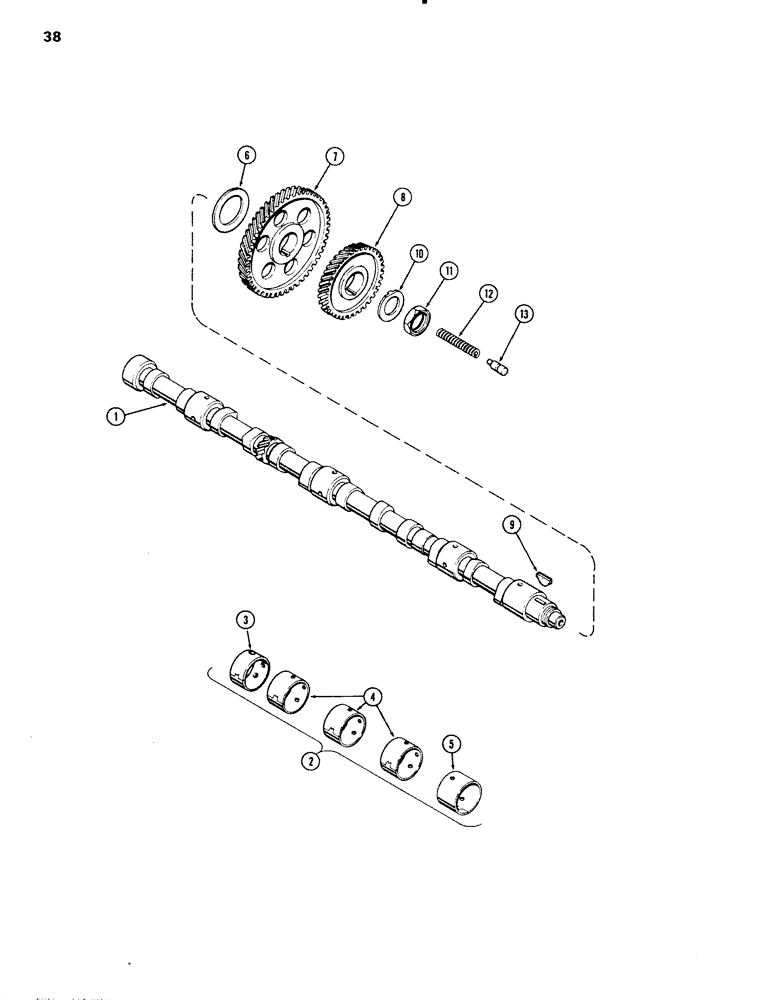

Схема запчастей Case IH 504BDT - (038) - CAMSHAFT, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES WITH OIL COOLED PISTONS, C (02) - ENGINE
2
9
5
8
13
7
1
10
3
11
12
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A66124

CAMSHAFT

- engine

1шт.

2

A23544

BUSHING

KIT - camshaft

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1-5/32" wide

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1-7/16" wide

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-21/32" wide

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

GEAT - idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" Hi-pro

1шт.

10

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

A27853

SPRING

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.
