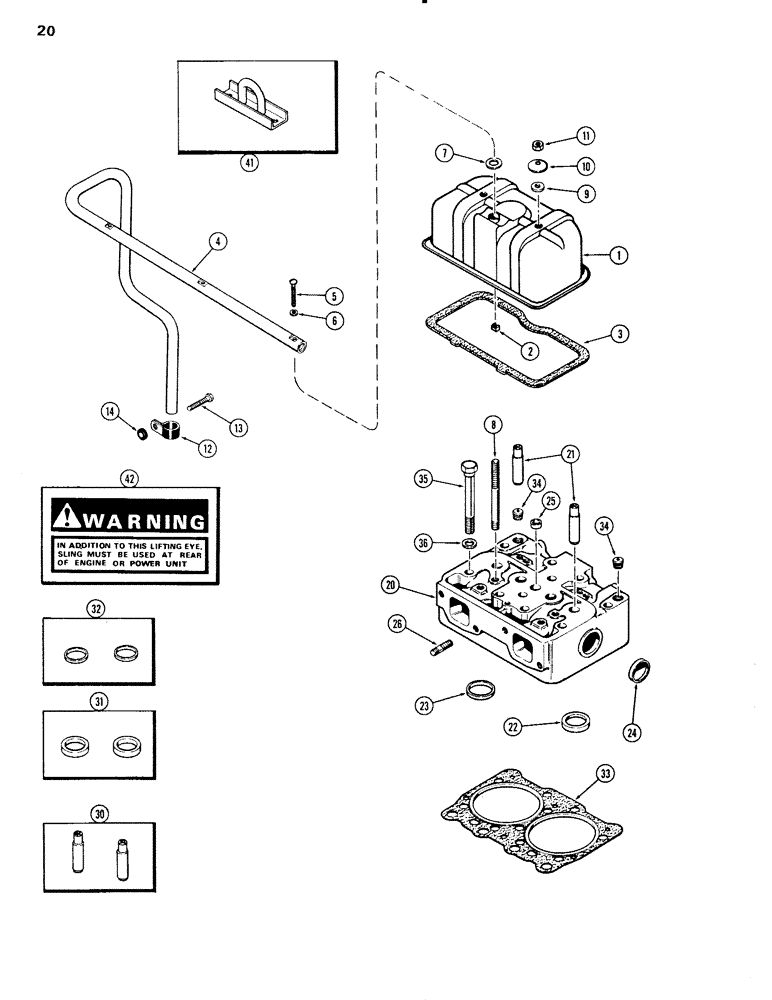

Запчасти Case IH 504BDT (020) - CYLINDER HEAD & COVER, ENG. LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES W/O OIL COOLED PISTONS, B (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
COVER ASSY. - cylinder head
3шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - 1/4" N.C. Tinnerman
1шт.
3
A65734
CYLINDER HEAD GASKET
GASKET - cover
3шт.
4
A65433
TUBE
TUBE - breather
1шт.
5
75-440
SCREW
SCREW - 1/4 x 2-1/2" rd. hd. mach.
3шт.
6
A34133
GASKET
GASKET - breather tube screw
3шт.
7
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
GASKET -, Serial Range: tube-cover
3шт.
8
A60885
STUD
STUD - rocker arm brkt. & cyl. hd. cover
6шт.
9
A23684
GASKET
GASKET - cover stud
6шт.
10
A23683
WASHER
WASHER - cover stud, beveled
6шт.
11
25-107
NUT,7/16"-14, G5
NUT - 7/16" N.C. hex.
6шт.
12
D34033
CLAMP
CLAMP - breather tube
1шт.
13
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
BOLT - 1/2 x 2-1/2" N.C. hex.
1шт.
14
A64261
SPARE PART SPACER
1шт.
20
A60558
CYLINDER HEAD
HEAD ASSY. - cylinder
3шт.
20
AR66686
REMAN-CYLINDER HEAD
Cylinder Head
3шт.
20
AC66686
CORE-CYLINDER HEAD
Return Number
3шт.
21
NSS
NOT SOLD SEPARAT
GUIDES - (Order ref. 30)
4шт.
22
NSS
NOT SOLD SEPARAT
INSERT - exhaust (Order ref.31)
2шт.
23
NSS
NOT SOLD SEPARAT
INSERT - intake (Order ref. 32)
2шт.
24
A34124
PLUG,Cup, 1 5/8", Stainless
PLUG - 1-5/8" cup
2шт.
25
A58620
PLUG,Cup, 3/4", Stainless
PLUG - 3/4" cup
1шт.
26
A59077
STUD
STUD - 3/8" N.C. x 1-13/16"
12шт.
30
A41781
GUIDE
GUIDE KIT - (Set of 2)
6шт.
31
A41757
INSERT
INSERT KIT - exhaust (Set of 2)
3шт.
32
A42259
INSERT
INSERT KIT - intake (Set of 2)
3шт.
33
A64113
CYLINDER HEAD GASKET
GASKET - cylinder head
3шт.
35
A62732
STEP BOLT
BOLT - 5/8 x 5-5/8" N.C. hex.
30шт.
36
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - cylinder head bolt
30шт.
41
A64941
SPARE PART BRACKET - engine lifting
1шт.
42
321-2538
SPARE PART DECAL - warning, lifting eye
1шт.
Выбрано товаров: 32
