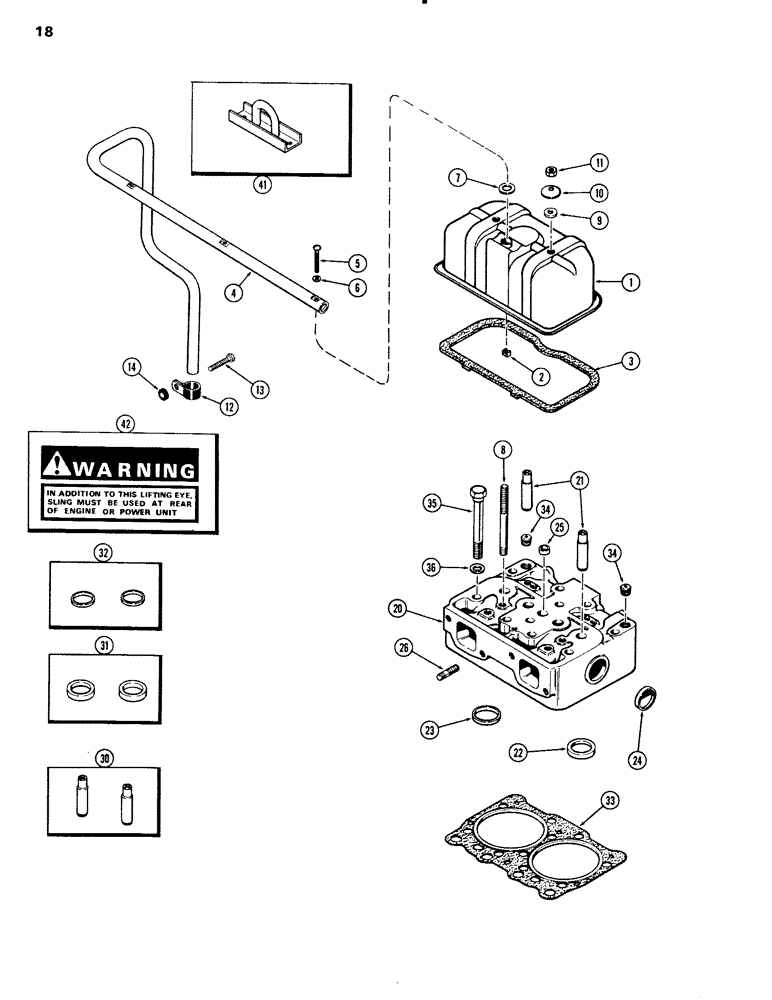

Запчасти Case IH 504BDT (018) - CYLINDER HEAD & COVER, ENGINE LESS FUEL DEVICE, 504BDT TURBOCHARGED ENGINES W/OIL COOLED PISTONS, C (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cover

3шт.

4

A65433

TUBE

- breather

1шт.

5

75-440

SCREW

- 1/4 x 2-1/2" rd. hd. mach.

3шт.

6

A34133

GASKET

- breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

8

A60885

STUD

- rocker arm brkt. & cyl. hd. cover

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

12

D34033

CLAMP

- breather tube

1шт.

13

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

1шт.

14

A64261

SPACER

1шт.

20

A66190

HEAD ASSY.

- cylinder

3шт.

20

AR66194

REMAN-CYLINDER HEAD

3шт.

20

AC66194

CORE-CYLINDER HEAD

Return Number

3шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - (Order ref. 30)

4шт.

22

NSS

NOT SOLD SEPARAT

INSER - exhaust (Order ref. 31)

2шт.

23

NSS

NOT SOLD SEPARAT

INSER - intake (Order ref. 32)

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup

1шт.

26

A59077

STUD

- 3/8" N.C. x 1-13/16"

12шт.

30

A41781

GUIDE

KIT - (Set of 2)

6шт.

31

A44576

INSERT

KIT - exhaust (Set of 2)

3шт.

32

A44577

INSERT

KIT - intake (Set of 2)

3шт.

33

A64113

CYLINDER HEAD GASKET

- cylinder head

3шт.

34

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

6шт.

35

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex.

30шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

41

A64941

BRACKET - engine lifting

1шт.

42

321-2538

DECAL - warning, lifting eye

1шт.
