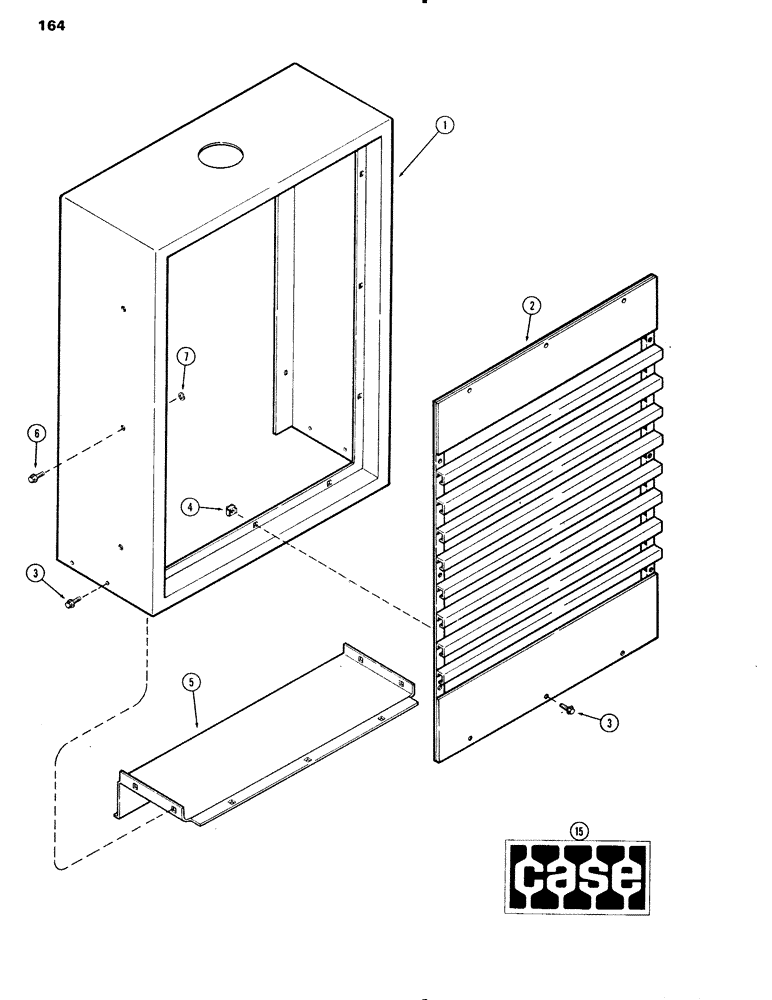

Запчасти Case IH 504BD (164) - ENCLOSURE, RADIATOR SHELL, TURBOCHARGED ENGINES, B, C / NATURALLY ASPIRATED ENGINES (09) - CHASSIS

1

A64683

SHELL - grill, turbocharged engines (All Columns)

1шт.

2

A64255

GRILL (Qty: C _ 1)

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Qty: B - 7) (Qty: C - 19) Hex Flg, 1/4"-20 x 1/2", Serr

1шт.

4

131-115

NUT

- 1/4" N. C. Tinnerman (Qty: B - 7) (Qty: D - 19)

1шт.

5

A64254

COVER - grille shell, lower (All Columns)

1шт.

6

121-121

BOLT - 3/8 x 1" N.C. hex. (All Columns)

2шт.

6

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex. (All Columns)

4шт.

7

193-103

WASHER, LOCK

WASHER - lock, 3/8" (All Columns)

4шт.

15

321-1308

DECAL

- Case (All Columns)

1шт.

1

A65462

SHELL - grill, naturally aspirated engines (All Columns)

1шт.

2

A64255

GRILLE (Qty: C - 1)

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Qty: B - 7) (Qty: C - 19) Hex Flg, 1/4"-20 x 1/2", Serr

1шт.

4

131-115

NUT

- 1/4" N.C., Tinnerman (Qty: B - 7) (Qty: C - 19)

1шт.

5

A64254

COVER - grille shell, lower (All Columns)

1шт.

6

121-121

BOLT - 3/8 x 1" N.C. hex. (All Columns)

2шт.

6

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex. (All Columns)

4шт.

7

193-103

WASHER, LOCK

WASHER - lock, 3/8" (All Columns)

4шт.

15

321-1308

DECAL

- Case (All Columns)

1шт.
