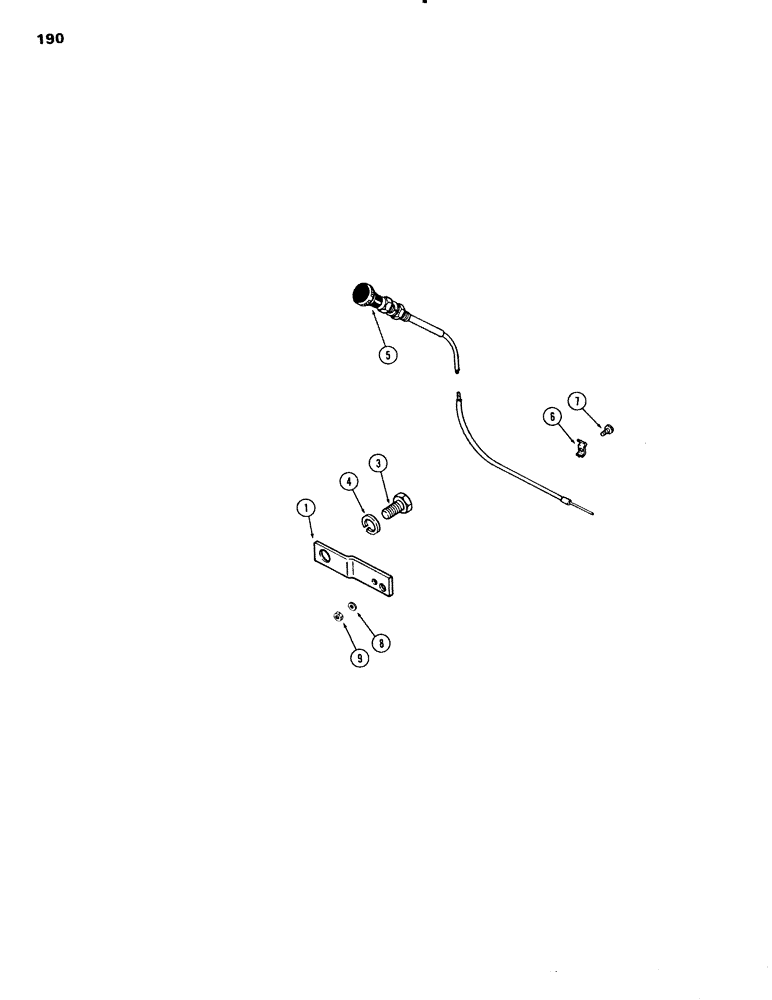

Запчасти Case IH 504BD (190) - SHUT-DOWN CONTROL, MANUAL, RIGHT SIDE OR OPEN, LEFT SIDE AND REAR PANEL B, C, D (04) - ELECTRICAL SYSTEMS

1

A62098

BRACKET

- fuel shut-off control (All Columns)

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(All Columns) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

(All Columns) 3/8"

2шт.

5

A66211

CABLE - fuel shut-off (Qty: B - 1)

1шт.

5

A64850

LEVER

CABLE - fuel shut-off (Qty: C - 1) (Qty: D - 1)

1шт.

6

B51765

CLIP

- cable to bracket (All Columns)

1шт.

7

173-276

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

- #8 x 3/4" rd. hd. mach. (All Columns)

1шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, (All Columns) #8

1шт.

9

129-16

NUT,#8-32

(All Columns) #8-32

1шт.
