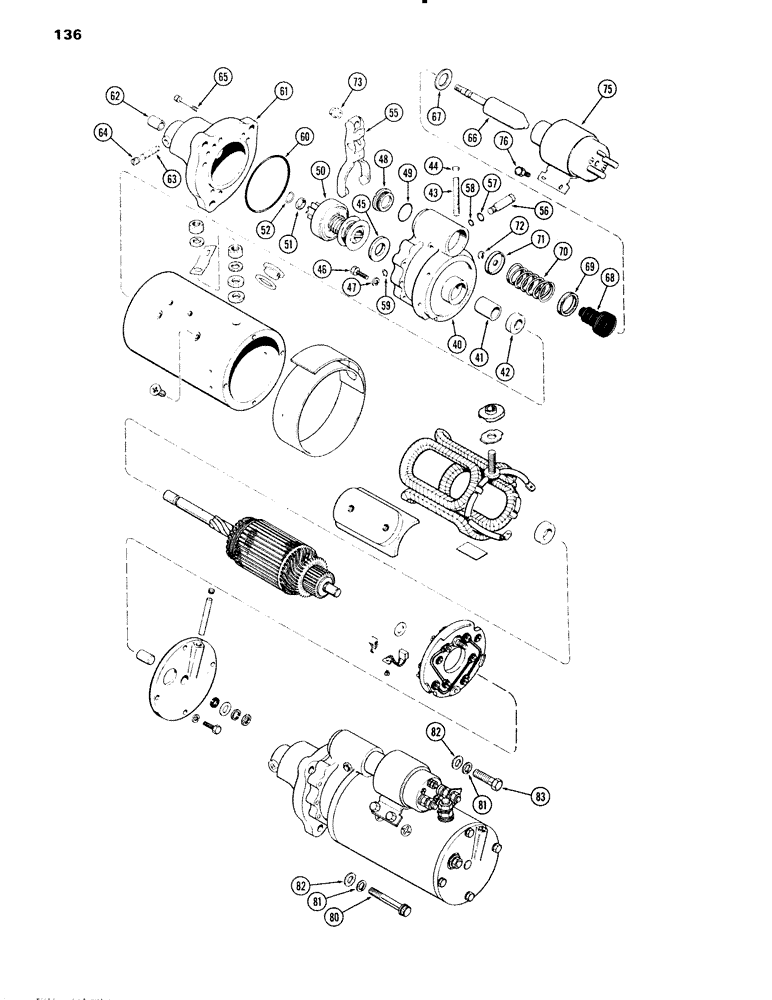

Запчасти Case IH 504BD (136) - STARTING MOTOR, 12 VOLT (CONTD) (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A64907
ELECTRIC MOTOR
STARTER ASSY. - (Cont'd. from Page 135)
1шт.
104212A2R
REMAN-STARTER
Remanufactured Starter
1шт.
104212A1C
CORE-STARTER
Return Part Number
1шт.
40
A43859
HOUSING
HOUSING ASSY. - shift lever
1шт.
41
A40944
BUSHING
BUSHING - 3/4 x 7/8 x 3/4"
1шт.
42
A25407
OIL SEAL
SEAL - oil, 3/4 x 1-3/8 x 13/32"
1шт.
43
A41417
WICK
WICK - oil
1шт.
44
221-1849
PLUG
PLUG - 1/8" hex. sckt. hd., pipe
1шт.
45
R15043
WASHER
WASHER - brake, 25/32 x 2 x 3/32"
1шт.
46
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
BOLT, Hex, 1/4"-28 x 1", G5
5шт.
47
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
48
R21587
PLUG
PLUG - inspection, lever housing
1шт.
49
A41924
GASKET
GASKET - plug
1шт.
50
A42331
DRIVE
DRIVE ASSY. - clutch
1шт.
51
R15049
COLLAR
COLLAR - pinion stop
1шт.
52
R15048
RING
RING - retainer, pinion stop
1шт.
55
A43852
LEVER
SHIFT LEVER ASSY.
1шт.
56
A43851
SHAFT
SHAFT - shift lever
1шт.
57
R21573
O-RING,0.369" ID x 0.515" OD x 0.073"
"O" RING - 3/8 x 1/2 x 1/16"
1шт.
58
R21574
O-RING,0.244" ID x 0.391" OD x 0.073"
"O" RING - 1/4 x 3/8 x 1/16"
1шт.
59
G46146
SNAP RING,#37, Ext
Ring, Snap, , shift lever, attaching pin #37, Ext
1шт.
60
A43854
O-RING,3.237" ID x 0.106" THK
"O" RING - lever hsg. to drive hsg.
1шт.
61
A43858
HOUSING
HOUSING ASSY. - drive
1шт.
62
A40868
BUSHING
BUSHING - 9/16 x 3/4 x 3/4"
1шт.
63
R15023
WICK
WICK - oil
1шт.
64
221-1849
PLUG
PLUG - 1/8" hex. sckt. hd., pipe
1шт.
65
62-414
HEX SOC SCREW,1/4"-28 x 7/8"
SCREW - 1/4 x 7/8" N.F. sckt. hd. cap
6шт.
66
A43857
PLUNGER
PLUNGER ASSY.
1шт.
67
A41922
WASHER
WASHER - 13/16 x 1-3/8 x 1/32"
1шт.
68
A42308
BOOT
BOOT - plunger
1шт.
69
A43380
BACK-UP RING
RETAINER - spring, w/1-13/64" hole
1шт.
70
A41242
SPRING
SPRING - shift lever, 1-3/8" O.D. x 2-25/32" long
1шт.
71
A43419
SEAT
RETAINER - spring, w/13-32" hole
1шт.
72
G46146
SNAP RING,#37, Ext
Ring, Snap, , plunger spring retainer #37, Ext
1шт.
73
A43856
NUT
NUT - plunger rod guide adjusting
1шт.
75
A43846
SOLENOID
SOLENOID ASSY. - (See Page 143)
1шт.
76
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
SCREW - 1/4 x 23/64" N.C. hex.
4шт.
80
166-93
12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8
SCREW - 1/2 x 3" N.C. Ferry hd., cap
1шт.
81
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
82
L30674
WASHER
WASHER - 17/32 x 1 x 1/8"
3шт.
83
113-483
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
BOLT - 1/2 x 1-3/4" N.C. hex.
2шт.
Выбрано товаров: 41
