Запчасти Case IH 504BD (134) - STARTING MOTOR, 12 VOLT (04) - ELECTRICAL SYSTEMS

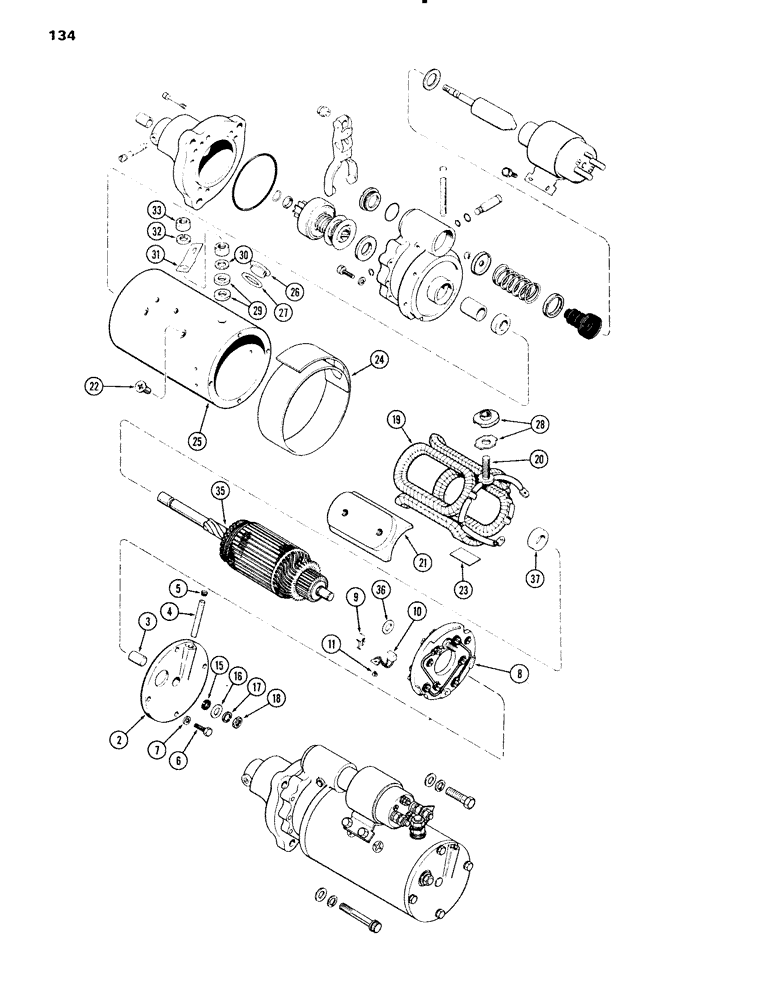

Схема запчастей Case IH 504BD - (134) - STARTING MOTOR, 12 VOLT (04) - ELECTRICAL SYSTEMS
19
3
15
24
35
31
23
18
7
6
9
26
11
5
33
2
25
27
36
4
30
21
16
37
8
10
22
20
28
29
32
17

Артикул

Название

Примечание

Количество

A64907

ELECTRIC MOTOR

STARTER ASSY. - (Delco #1113399) 12 volt

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

104215A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104215A1C

CORE-STARTER

Return Part Number

1шт.

2

A43849

FRAME

FRAME ASSY. - commutator end

1шт.

3

A42323

BUSHING

BUSHING - 9-16 x 11 x 7/8"

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1849

PLUG

PLUG - 1/8" P.T. hex. sckt. hd.

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

A43850

PLATE

PLATE ASSY. - brush (less brushes)

1шт.

9

A42333

SPRING

SPRING - brush

4шт.

10

A40891

BRUSH, COMMUTATOR

BRUSH BRUSH ASSY.

1шт.

11

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - #8 x 5/16" rd. hd. mach.

4шт.

15

A42085

BUSHING

BUSHING - commutator end terminal

1шт.

16

R15013

WASHER

WASHER - 3/8 x 11/16 x 1/16"

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

A42332

COIL

FIELD COIL ASSY.

1шт.

20

A40896

STUD

STUD - terminal, 1/2" N.C. x 2-1/8", special

1шт.

21

R15115

SHOE

SHOE - pole

4шт.

22

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - 3/8 x 3/16" N.F. pan hd., Phillips

8шт.

23

A42327

INSULATOR

INSULATION - 1-13/16 x 2 x 1/64"

2шт.

24

A43848

INSULATOR

INSULATOR - field coil

1шт.

25

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

26

R21587

PLUG

PLUG - inspection, commutator end

1шт.

27

A41924

GASKET

GASKET - plug

1шт.

A41925

BUSHING

BUSHING PACKING - field terminal stud

1шт.

28

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

29

D30005

INSULATOR

WASHER - insulator, 33/64 x 1 x 3/32"

2шт.

30

D30006

WASHER

WASHER - 33/64 x 7/8 x 1/32"

1шт.

31

NLS

NO LONGER SERVICED

CONNECTOR CONNECTOR - solenoid

1шт.

32

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

33

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

35

A43855

ARMATURE

ARMATURE

1шт.

36

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - armature spacer, comm. end

1шт.

37

A43853

BUSHING

SPACER - armature, drive end

1шт.

Выбрано товаров: 39
