Запчасти Case IH 504BD (124) - FUEL INJECTION PUMP, 504BD AND 45BD NATURALLY ASPIRATED ENGINES, B, E, H (03) - FUEL SYSTEM

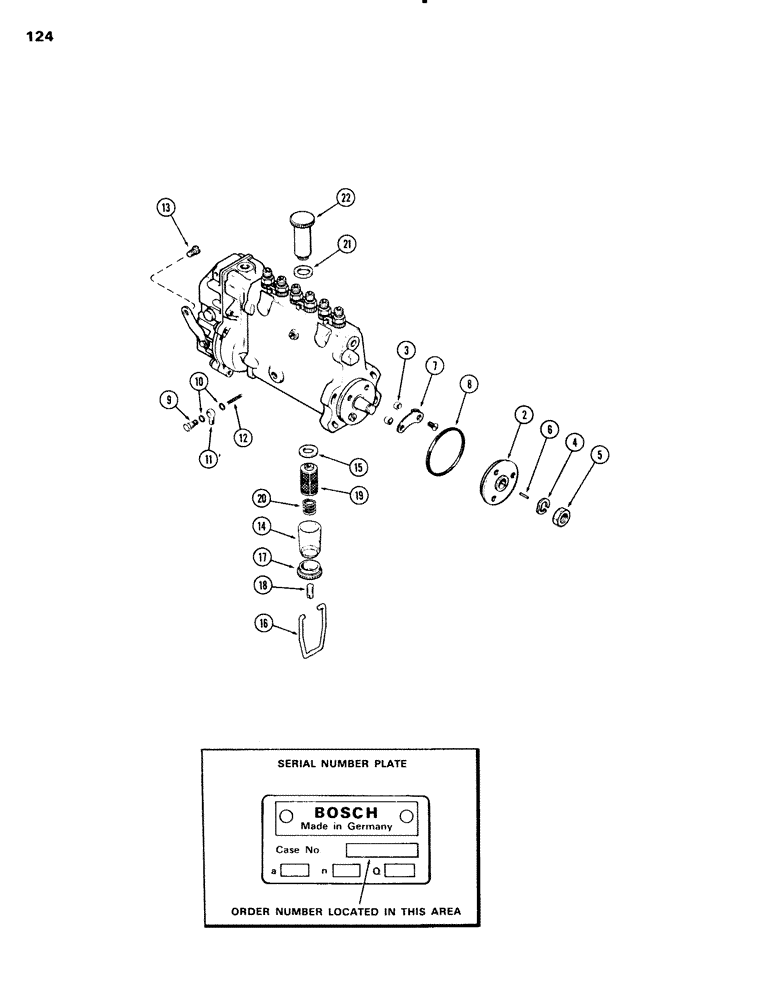

Схема запчастей Case IH 504BD - (124) - FUEL INJECTION PUMP, 504BD AND 45BD NATURALLY ASPIRATED ENGINES, B, E, H (03) - FUEL SYSTEM
9
3
10
16
6
4
18
21
2
11
20
7
8
14
5
22
12
19
15
17
13

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP ASSY. - fuel injection (All Columns)

1шт.

FOR SERVICE ORDER THE PART NO. ON THE SERIAL NO. PLATE LOCATED IN THE AREA ILLUSTRATED IN THE INSET.

1шт.

2

A41853

HUB

- pump drive (All Columns)

1шт.

3

A41855

BUSHING

SPACER - pointer (All Columns)

2шт.

4

A42312

LOCK WASHER

- lock, hub nut (All Columns)

1шт.

5

A42313

NUT

- hub reatining (All Columns)

1шт.

6

A20933

KEY

- hub to pump shaft (All Columns)

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment (All Columns)

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - 3-3/16 x 2-61/64 x 1/8" (All Columns)

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting (All Columns)

1шт.

10

A22381

WASHER

- tube fitting, copper (All Columns)

2шт.

11

A25191

FITTING

- oil tube to pump (Banjo) (All Columns)

1шт.

12

A25190

SPRING

- oil tube fitting (All Columns)

1шт.

13

A44259

SCREW

- pump stop control cable (All Columns)

1шт.

14

A43347

BOWL

- filter (All Columns)

1шт.

15

A43346

GASKET

- bowl (All Columns)

1шт.

16

A43350

CLAMP

BAIL - bowl (All Columns)

1шт.

17

A43348

NUT

BAIL NUT - bowl seat (All Columns)

1шт.

18

A43349

STUD

- bail nut retaining (All Columns)

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter (All Columns)

1шт.

20

A43345

SPRING

- element retaining (All Columns)

1шт.

21

A43351

SEAL

- hand primer pump (copper) (All Coumns)

2шт.

22

A43343

CARTRIDGE

PUMP - hand primer (All Columns)

1шт.

Выбрано товаров: 23
