Запчасти Case IH 504BD (098) - FUEL INJECTION NOZZLE, ENGINE LESS FUEL DEVICE, 504BD AND 451BD NATURALLY ASPIRATED ENGINES (03) - FUEL SYSTEM

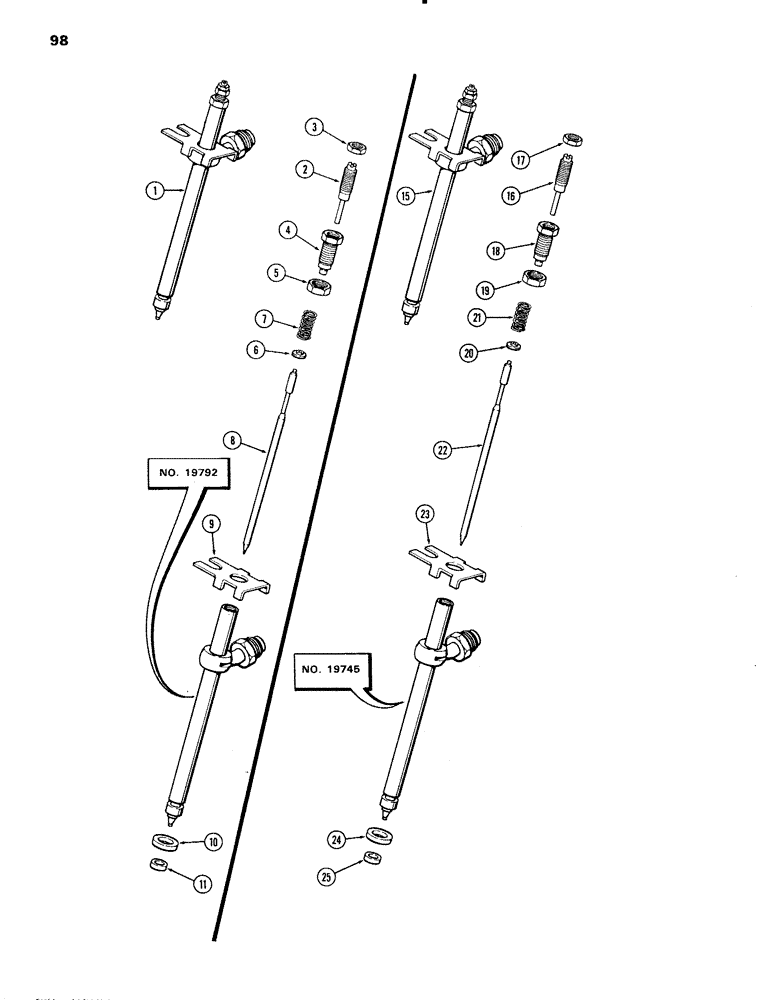

Схема запчастей Case IH 504BD - (098) - FUEL INJECTION NOZZLE, ENGINE LESS FUEL DEVICE, 504BD AND 451BD NATURALLY ASPIRATED ENGINES (03) - FUEL SYSTEM
20
23
18
5
1
17
25
9
22
24
6
2
8
21
10
4
16
3
7
11
15
19

Артикул

Название

Примечание

Количество

1

A64439

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's #19792 stamped on body, coded yellow), 504BD Engine

6шт.

Whenever nozzle is removed from the head, the seal Ref, 11 and washer Ref. 10, must be replaced with new ones before nozzle is installed back into the head.

1шт.

A140830R

REMAN-INJECT NOZZLE

451BD, 504BD both (SIZE 111), Reman for new PN A64439

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- #10 N.F. hex. lock, lift adjusting

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- 5/16" N.F. hex. lock, pressure adjusting

1шт.

6

A44369

SEAT

- spring

1шт.

7

A43733

SPRING

- pressure adjusting (Color code red)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injection (Supplier's #19745 stamped on body, coded red), 451BD Engine

6шт.

Whenever nozzle is removed from the head, the seal Ref, 25 and washer Ref. 24, must be replaced with new ones before nozzle is installed back into the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

504BD, 451BD all (SIZE 111) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

17

A43602

NUT

- #10 N.F. hex. lock, lift adjusting

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

19

A42424

LOCK NUT

- 5/16 N.F. hex. lock, pressure adjusting

1шт.

20

A44369

SEAT

- spring

1шт.

21

A43601

SPRING

- pressure adjusting (Color code brown)

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Выбрано товаров: 28
