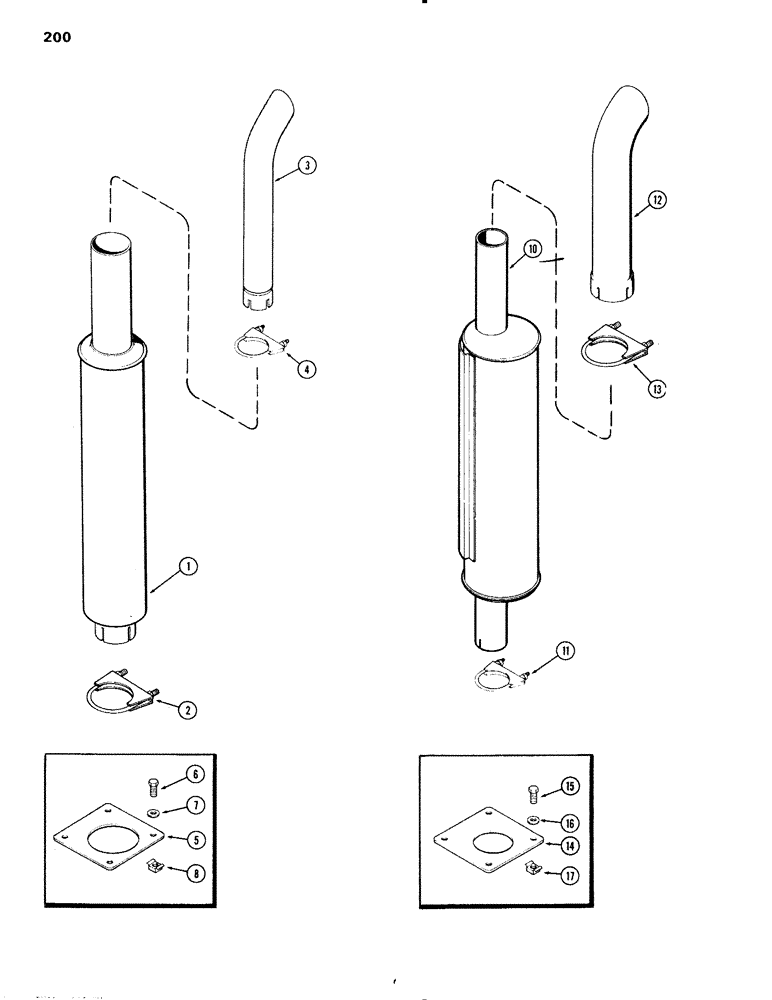

Запчасти Case IH 504BD (200) - EXHAUST SYSTEM, MUFFLER, VERTICAL, WITH 90° ELBOW, W/3-1/2" INLET, D / W/2-3/4" INLET (02) - ENGINE

1

A64990

MUFFLER

- exhaust, w/3-1/2" inlet

1шт.

2

A62880

COLLAR CLAMP

CLAMP - muffler

1шт.

3

A62850

PIPE

ELBOW - exhaust, 90deg.

1шт.

4

A62878

CLAMP

- elbow

1шт.

5

A65907

PLATE - hood exhaust hole cover

1шт.

6

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

7

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

8

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

4шт.

10

A59765

MUFFLER

- exhaust, w/2-3/4" inlet

1шт.

11

A62876

CLAMP

- muffler

1шт.

12

A62471

EXTENSION

ELBOW - exhaust, 90deg.

1шт.

13

A62876

CLAMP

- muffler

1шт.

14

A65908

PLATE - hood exhaust hole cover

1шт.

15

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

16

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

17

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

4шт.
