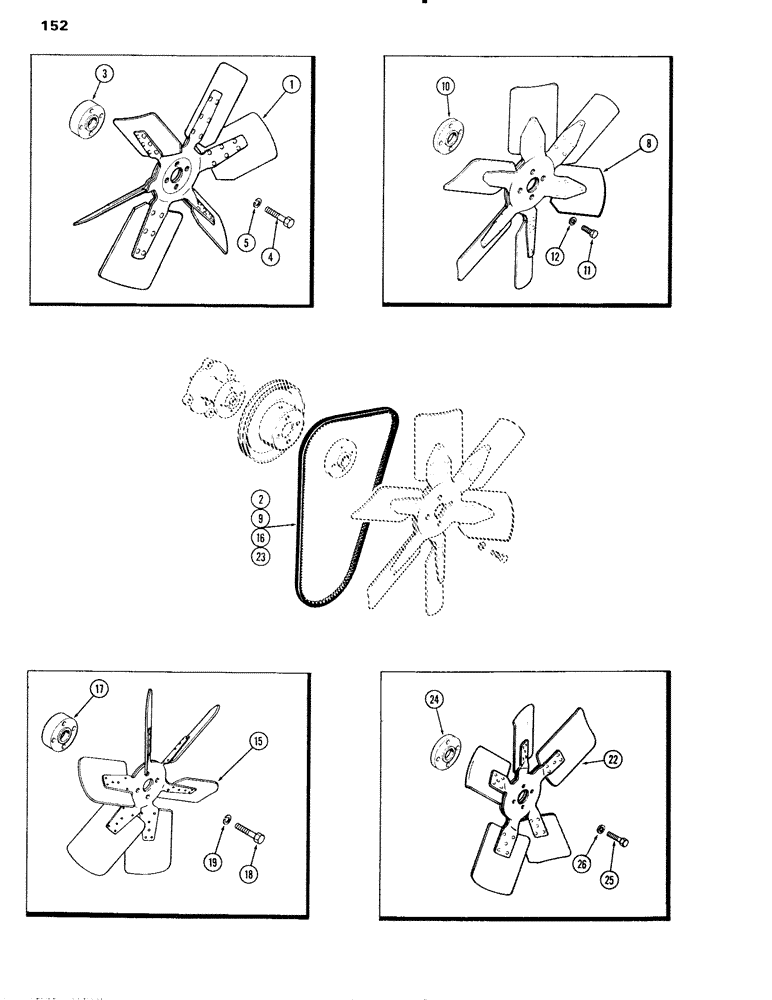

Запчасти Case IH 504BD (152) - FANS, PULLER / PUSHER (02) - ENGINE

1

A64705

FAN

- 22" puller (6 blade)

1шт.

2

A64206

V-BELT,0.69" W x 57.00" L

Fan 0.69" W x 57.00" L

1шт.

3

A62465

BUSHING

SPACER - fan, 1-1/4"

1шт.

4

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

A65700

FAN

- 19-1/2" puller (6 blade)

1шт.

9

A64206

V-BELT,0.69" W x 57.00" L

Fan 0.69" W x 57.00" L

1шт.

10

A61268

BUSHING

SPACER - fan, 1"

1шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

A50913

FAN

- 22" pusher (6 blade)

1шт.

16

A64206

V-BELT,0.69" W x 57.00" L

Fan 0.69" W x 57.00" L

1шт.

17

A62465

BUSHING

SPACER - fan, 1-1/4"

1шт.

18

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

A64205

FAN

- 19-1/2" pusher (5 blade)

1шт.

23

A64206

V-BELT,0.69" W x 57.00" L

Fan 0.69" W x 57.00" L

1шт.

24

A61268

BUSHING

SPACER - fan, 1"

1шт.

25

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
