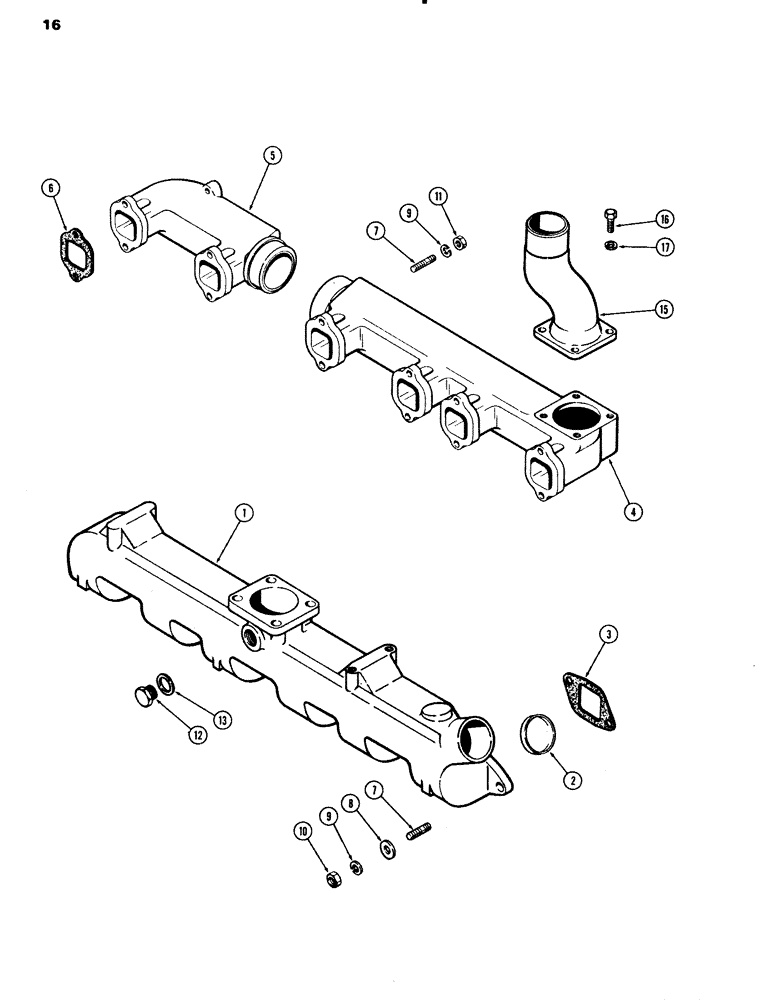

Запчасти Case IH 504BD (016) - MANIFOLDS, ENGINE LESS FUEL DEVICE, 504BD AND 451BD NATURALLY ASPIRATED ENGINES (02) - ENGINE

1

A62847

TUBE

MANIFOLD - intake

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

6шт.

4

A58749

MANIFOLD

- exhaust, front

1шт.

5

A58873

MANIFOLD

- exhaust, rear

1шт.

6

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

7

A59077

STUD

- intake & exhaust manifolds

24шт.

8

195-25

WASHER,3/8"

12шт.

9

92-6

LOCK WASHER,3/8"

24шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (intake manifold)

12шт.

11

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. seez-pruf (exhaust manifold)

12шт.

12

A20917

PLUG

- heater hole

1шт.

13

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

15

A58751

MUFFLER

STACK - exhaust manifold

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.
