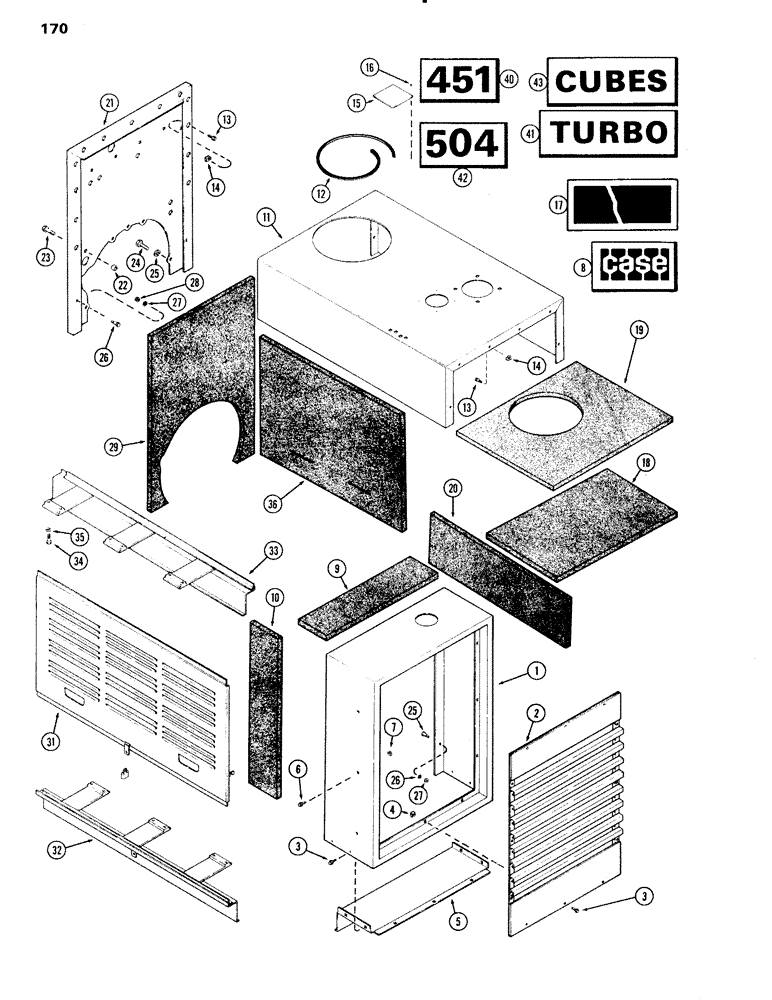

Запчасти Case IH 451BDT (170) - ENCLOSURE, COMPLETE, WITH INSULATION, TURBOCHARGED ENGINES, F (09) - CHASSIS

1

A64683

SHELL - grille

1шт.

2

A64255

GRILLE

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

19шт.

4

131-115

NUT

- 1/4" Tinnermen

19шт.

5

A64254

COVER - grille shell, lower

1шт.

6

121-121

BOLT - 3/8 x 1" N.C. hex.

2шт.

6

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex.

4шт.

7

193-103

WASHER, LOCK

WASHER - lock, 3/8"

4шт.

8

321-1308

DECAL

- Case

1шт.

9

NSS

NOT SOLD SEPARAT

INSULATION - grille shell, top (Order A44528)

1шт.

A44528

FOAM

- noise barrier 1 x 34 x 72" (cut as req'd)

1шт.

10

NSS

NOT SOLD SEPARAT

INSULATION - grille shell, side, (Order A44528)

9шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd)

1шт.

11

A64653

HOOD - engine

1шт.

12

A65887

TRIM - air cleaner hole

1шт.

13

193-510

BOLT - 5/16 x 3/4" N.C. hex., sems

12шт.

14

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

12шт.

15

A64266

COVER - engine lifting eye

1шт.

16

187-1000

SCREW - #10 x 1/4" rd. hd. self-tapping

4шт.

17

321-2568

DECAL - black stripe, 45-3/4" long

2шт.

18

A66456

INSULATION - hood, top-front

1шт.

19

A66457

INSULATION - hood, top-rear

1шт.

20

A66453

INSULATION - hood, side

2шт.

21

A65888

PANEL - rear

1шт.

22

A64261

SPACER - rear panel

3шт.

23

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

A31230

BOLT - side panel lock

4шт.

27

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

28

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

29

NSS

NOT SOLD SEPARAT

INSULATION - rear panel (Order A44528)

1шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd)

1шт.

31

A64661

PANEL - side

2шт.

32

A64664

SUPPORT - hoos side panel, R.H.

1шт.

33

A64665

SUPPORT - hood side panel, L.H.

1шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

12шт.

35

92-6

LOCK WASHER,3/8"

12шт.

A64400

PADLOCK - side panel

2шт.

36

A66458

INSULATION - side panel

2шт.

40

321-2380

DECAL - 451

1шт.

41

321-2383

DECAL - Turbo

1шт.

42

321-2381

DECAL - 504

1шт.

43

321-2382

DECAL - Cubes

1шт.
