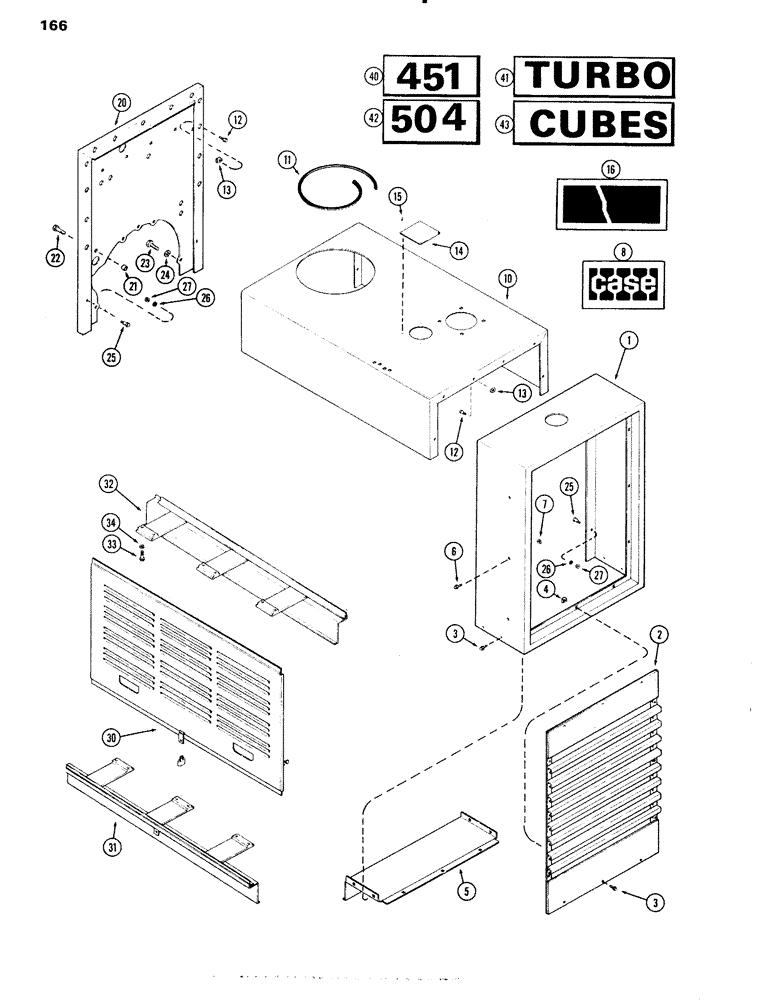

Запчасти Case IH 451BDT (166) - ENCLOSURE, COMPLETE, TURBOCHARGED ENGINES, D, E (09) - CHASSIS

1

A64683

SHELL - grill (All columns)

1шт.

2

A64255

GRILLE (All Columns)

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(All Columns) Hex Flg, 1/4"-20 x 1/2", Serr

19шт.

4

131-115

NUT

- 1/4" N.C. Tinnerman (All Columns)

19шт.

5

A64254

COVER - grille shell, lower (All Columns)

1шт.

6

121-121

BOLT - 3/8 x 1" N.C. hex. (All Columns)

2шт.

6

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex. (All Columns)

4шт.

7

193-103

WASHER, LOCK

WASHER - lock, 3/8" (All columns)

4шт.

8

321-1308

DECAL

_ Case (All Columns)

1шт.

10

A64653

HOOD - engine (All Columns)

1шт.

11

A65887

TRIM - air cleaner hole (All Columns)

1шт.

12

193-510

BOLT - 5/16 x 3/4" N.C. hex., sems (All Columns)

12шт.

13

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman (All Columns) J, Ret, 5/16"-18

12шт.

14

A64266

COVER - engine lifting eye (All Columns)

1шт.

15

187-1000

SCREW - #10 x 1/4" rd. hd. self-tapping (All Columns)

4шт.

16

321-2568

DECAL - black stripe, 45-3/4" long (All Columns)

2шт.

20

A65888

PANEL - rear (All Columns)

1шт.

21

A64261

SPACER - rear panel (All Columns)

3шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(All Columns) Hex, 1/2"-13 x 2", G5

3шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(All Columns) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

(All Columns) 1/2"

2шт.

25

A31230

BOLT - side panel lock (Qty: E - 4)

1шт.

26

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, (Qty: E - 4) Ext Tooth, 1/4"

1шт.

27

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex. (Qty: E - 4)

1шт.

30

A64661

PANEL - side (Qty: E - 2)

1шт.

31

A64664

SUPPORT - hood side panel, R.H. (Qty: E - 1)

1шт.

32

A64665

SUPPORT - hood side panel, L.H. (Qty: E - 1)

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x, 1-1/2" N.C. hex. (Qty: E - 12)

1шт.

34

92-6

LOCK WASHER,3/8"

(Qty: E - 12) 3/8"

1шт.

A64400

PADLOCK - side panel (Qty: E - 2)

1шт.

40

321-2380

DECAL - 451 (All Columns)

1шт.

41

321-2383

DECAL - Turbo (All Columns)

1шт.

42

321-2381

DECAL - 504 (All Columns)

1шт.

43

321-2382

DECAL - Cubes (All Columns)

1шт.
