Запчасти Case IH 451BDT (106) - TIMING GEAR COVER & FUEL INJ. PUMP DR, ENG. L/FUEL DEVICE, 504BDT & 451BDT W/O OIL COOLED PISTONS, B (02) - ENGINE

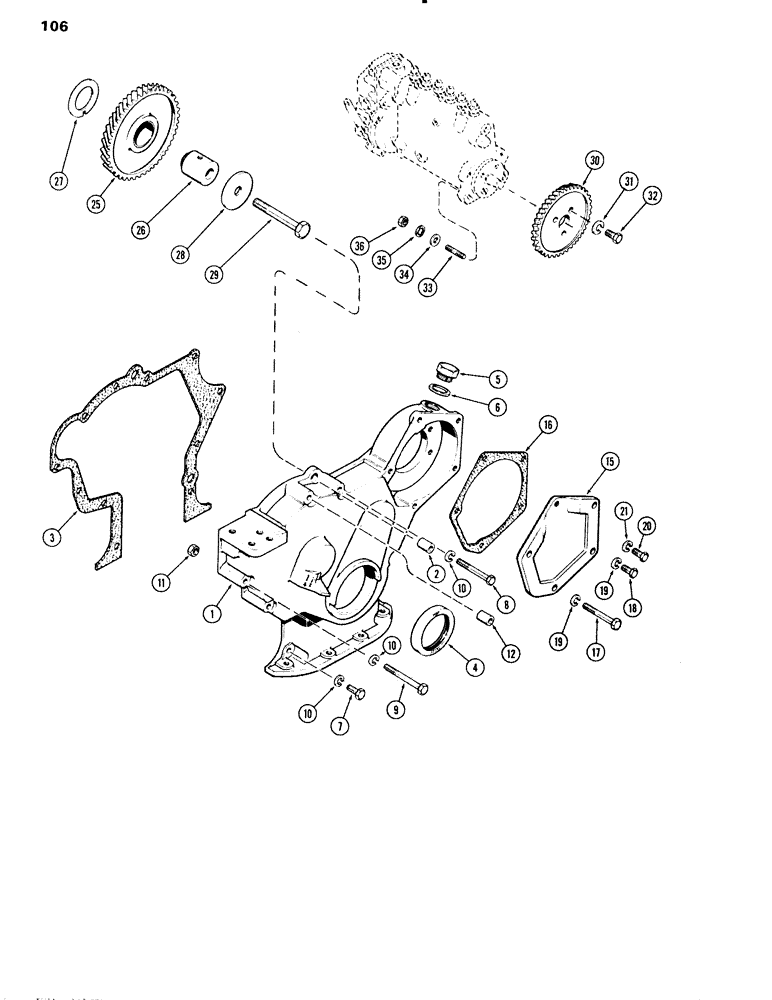

Схема запчастей Case IH 451BDT - (106) - TIMING GEAR COVER & FUEL INJ. PUMP DR, ENG. L/FUEL DEVICE, 504BDT & 451BDT W/O OIL COOLED PISTONS, B (02) - ENGINE
10
10
18
28
5
21
19
34
30
12
25
7
20
11
9
36
4
1
32
33
10
2
16
21
26
17
8
15
31
35
29
3
19
6

Артикул

Название

Примечание

Количество

1

A58609

COVER

ASSY. - timing gear

1шт.

2

A58611

PIN

DOWEL - cover

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62049

OIL SEAL

- crankshaft, front

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - timing, window plug

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N. C. hex.

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

2шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

12

A19774

BUSHING

SPACER - alternator pry point

1шт.

15

A61053

COVER

- fuel pump gear

1шт.

16

A58615

GASKET

- fuel pump gear cover

1шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

25

A62542

GEAR

ASSY. - idler

1шт.

26

A58690

SHAFT

- idler gear

1шт.

27

A58691

WASHER

- thrust, idler shaft

1шт.

28

A58692

PLATE

- thrust, idler shaft

1шт.

29

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

30

A58693

GEAR

- injection pump, 48 teeth

1шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

33

A58689

STUD

- 3/8" N.C. x 1-7/8"

4шт.

34

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

35

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

Выбрано товаров: 32
