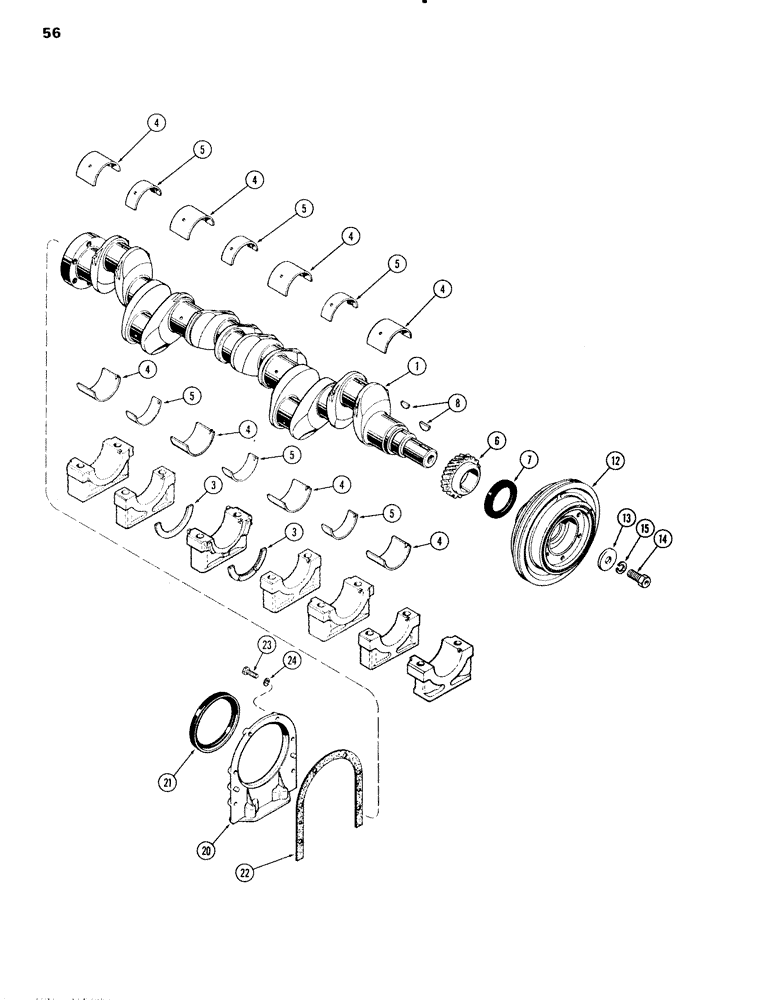

Запчасти Case IH 451BDT (056) - CRANKSHAFT, ENGINE LESS FUEL DEVICE, 451BDT TURBOCHARGED ENGINES (02) - ENGINE

1

A64100

SHAFT

CRANKSHAFT - engine

1шт.

3

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (Std.)(.185" thick)

2шт.

3

A42933

WASHER

- thrust, crankshaft (.191" thick)

2шт.

4

A43163

BEARING LINER

LINER KIT - main bearing, wide (Std.)

4шт.

4

A43164

BEARING LINER

LINER KIT - main bearing, wide (-.002")

4шт.

4

A43165

BEARING LINER

LINER KIT - main bearing, wide (-.010")

4шт.

4

A43166

BEARING LINER

LINER KIT - main bearing, wide (-.020")

4шт.

4

A43167

BEARING LINER

LINER KIT - main bearing, wide (-.030")

4шт.

5

A43158

BEARING LINER

LINER KIT - main bearing, narrow (Std.)

3шт.

5

A43159

BEARING LINER

LINER KIT - main bearing, narrow (-.002")

3шт.

5

A43160

BEARING LINER

LINER KIT - main bearing, narrow (-.010")

3шт.

5

A43161

BEARING SET

LINER KIT - main bearing, narrow (-.020")

3шт.

5

A43162

BEARING LINER

LINER KIT - main bearing, narrow (-.030")

3шт.

6

A58573

GEAR

- crankshaft

1шт.

7

A62049

OIL SEAL

- crankshaft front

1шт.

8

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

12

A64106

CRANKSHAFT

PULLEY - fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.
