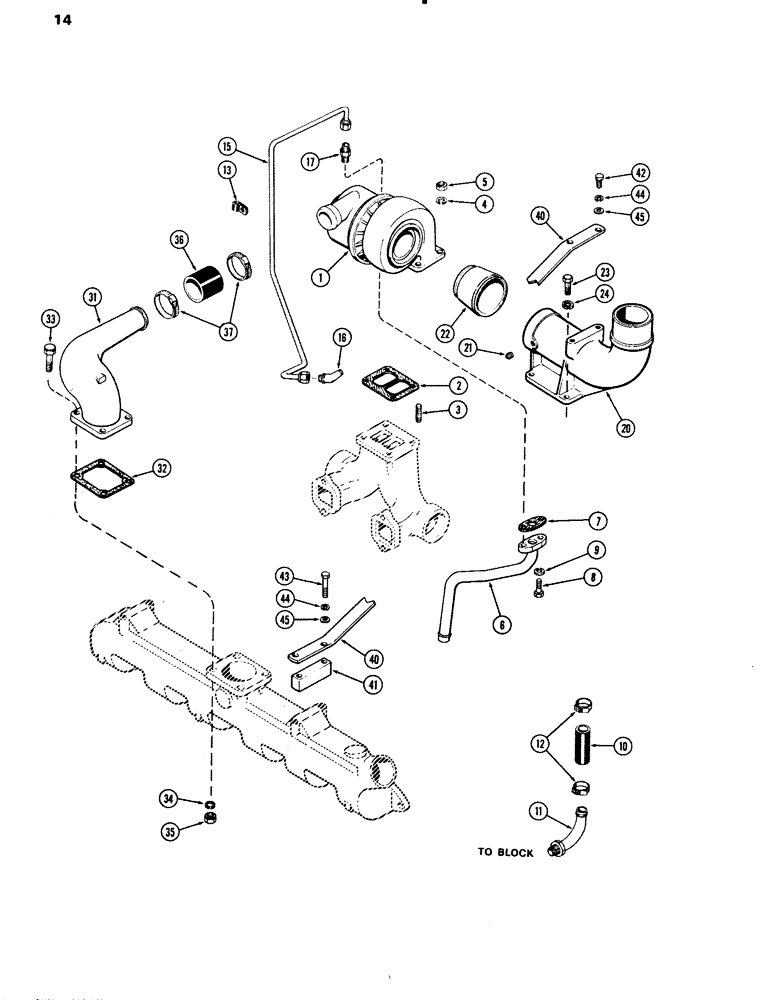

Запчасти Case IH 451BDT (014) - TURBOCHARGER, ENGINE LESS FUEL DEVICE, 451BDT TURBOCHARGED ENGINES (02) - ENGINE

1

A43361

REMAN-TURBOCHARGER

TURBOCHARGER - original equipment

1шт.

1

A43360

TURBOCHARGER

1шт.

DO NOT USE THIS PART NO. FOR ORDERING. THIS PART NO. IS TO BE USED ONLY IN REQUESTING RETURN AUTHORITY ON USED GARRET TURBOCHARGER WHICH YOU WISH TO RETURN FOR CREDIT.

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G11204

STUD

- 3/8" N.C. x 1-1/2"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT -3/8" N.C. hex., seez-pruf

4шт.

6

A62518

TUBE

- oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A58893

HOSE

-, Serial Range: drain-fitting

1шт.

11

A58897

FITTING

- drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

13

49845

CLAMP

CLIP - oil supply tube

1шт.

15

A64375

TUBE

- oil supply

1шт.

16

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 3/8" tube, 3/8" P.T., 90 Degree

1шт.

17

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8" tube, 1/4" P.T.

1шт.

20

A61265

ELBOW

- exhaust, turbocharger

1шт.

21

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" sq. hd. pipe

1шт.

22

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

31

A58903

ELBOW UNION

ELBOW - air intake, turbocharger

1шт.

32

A58910

GASKET

- elbow

1шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

36

A58894

HOSE

- air intake elbow

1шт.

37

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

40

A61944

BRACE

-, Serial Range: elbow-manifold

1шт.

41

A61945

SPACER

-, Serial Range: brace-manifold

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

43

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.
