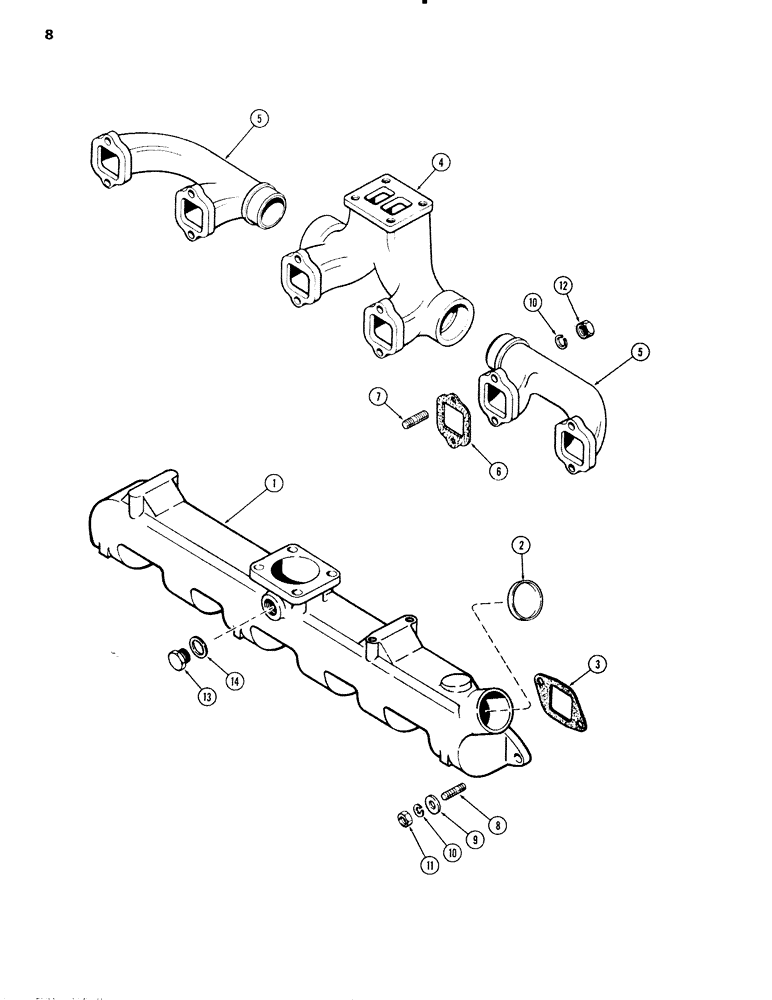

Запчасти Case IH 451BDT (008) - MANIFOLDS, ENGINE LESS FUEL DEVICE, 504BDT AND 451BDT TURBOCHARGED ENGINES W/O OIL COOLED PISTONS, B (02) - ENGINE

1

A62847

TUBE

MANIFOLD - intake

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2/-5/8" cup

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

6шт.

4

A76322

MANIFOLD

- exhaust, center

1шт.

5

A65917

MANIFOLD

MANIFOLE - exhaust, ends

2шт.

6

A58895

GASKET

- exhaust manifolds

6шт.

7

A35175

STUD

- exhaust manifolds

12шт.

8

A59077

STUD

- intake manifold

12шт.

9

195-25

WASHER,3/8"

12шт.

10

92-6

LOCK WASHER,3/8"

24шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, (intake manifold)

12шт.

12

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., seez-pruf (exhaust manifold)

12шт.

13

A20917

PLUG

- heater hole

1шт.

14

A20916

MANIFOLD GASKET

GASKET - plug

1шт.
