Запчасти Case IH 451BD (182) - INSTRUMENTATION HARDWARE, STANDARD GAUGES, HOOD, RIGHT AND LEFT SIDE OR OPEN, B, C (04) - ELECTRICAL SYSTEMS

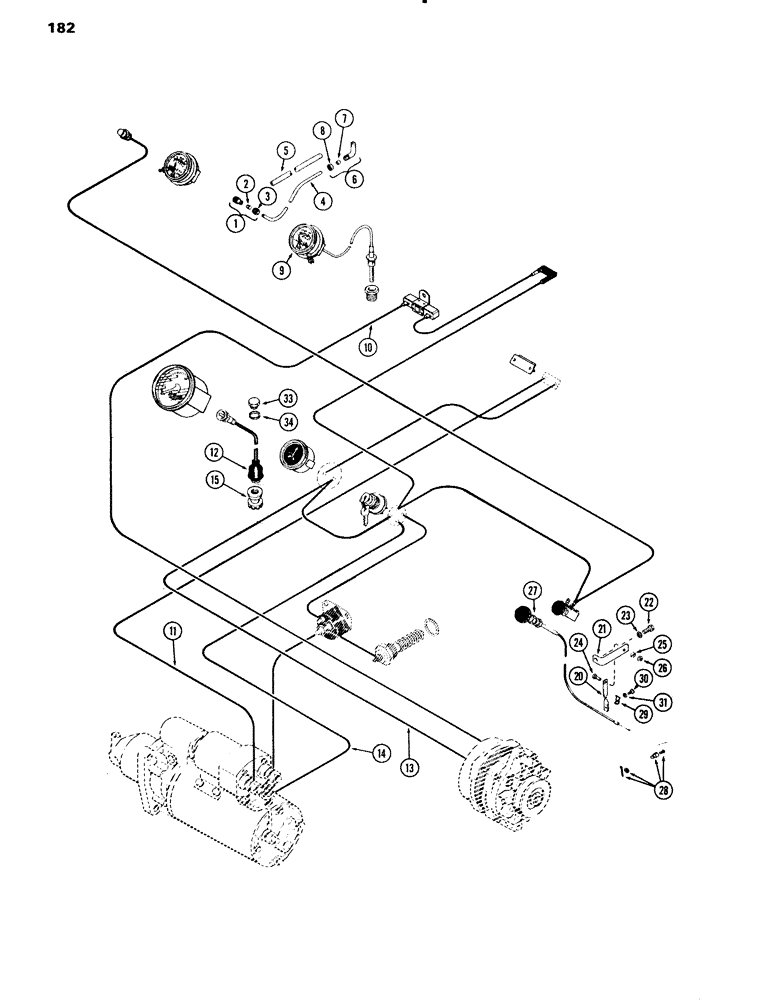

Схема запчастей Case IH 451BD - (182) - INSTRUMENTATION HARDWARE, STANDARD GAUGES, HOOD, RIGHT AND LEFT SIDE OR OPEN, B, C (04) - ELECTRICAL SYSTEMS
26
7
15
33
14
3
27
24
30
34
23
9
11
5
21
28
6
25
12
1
8
13
31
29
22
2
20
10
4

Артикул

Название

Примечание

Количество

1

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube x 1/8" P.T. (All Columns)

1шт.

2

222-100

TUBE NUT,1/8" Tube

SLEEVE - for (All Columns) 1/8" Tube

1шт.

3

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube (All Columns)

1шт.

4

A31240

TUBE - engine oil pressure, 43" (All Columns)

1шт.

5

A39999

LOOM - pressure tube (use w/A31240) (All Columns)

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8" tube x 1/8" P.T., 90deg. (All Columns)

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for (All Columns) 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube (All Columns)

1шт.

9

A30327

GAUGE

- water temperature, 36" capillary (All Columns)

1шт.

10

A66230

WIRE - alternator to resistor, 50" (Qty: B - 1)

1шт.

10

A66231

WIRE - alternator to resistor, 74" (Qty: C - 1)

1шт.

11

A51005

WIRE - circuit breaker to starter, 33" (Qty: B - 1)

1шт.

11

A66238

WIRE - circuit breaker to starter, 50" (Qty: C - 1)

1шт.

12

A66222

CABLE

- tachometer, 34" (Qty: B - 1)

1шт.

A24523

KIT

CORE - cable replacement (Qty: B - 1)

1шт.

12

A39819

CABLE

- tachometer, 52" (Qty: C - 1)

1шт.

13

A66234

WIRE - alternator to ammeter, 48" (Qty: B - 1)

1шт.

13

A64982

WIRE - alternator to ammeter, 73" (Qty: C - 1)

1шт.

14

A51003

WIRE - ign. switch to starter, 39" (Qty: B - 1)

1шт.

14

A66236

WIRE - ign. switch to starter, 52" (Qty: C - 1)

1шт.

15

A34266

DRIVE

ASSY. - tachometer (All Columns)

1шт.

20

A65287

BRACKET - throttle control cable mounting (All Columns)

1шт.

21

A65286

BRACKET - throttle control cable (All Columns)

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(All Columns) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

(All Columns) 3/8"

1шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(All Columns) Hex, 1/4"-20 x 1", G5

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (All Columns) 1/4"

1шт.

26

25-104

NUT,1/4"-20, G5

(All Columns) 1/4"-20, G5

1шт.

27

A65909

CONTROL

CABLE - throttle control, 72" (Qty: B - 1)

1шт.

27

A66228

CABLE

- throttle control, 54" (Qty: C - 1)

1шт.

28

T32087

CONNECTOR, ELEC

CONNECTOR - throttle control (All Colunms)

1шт.

29

B51765

CLIP

- throttle control cable (All Columns)

1шт.

30

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8 x 5/16" N.C. rd. hd. mach. (All Columns)

1шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, (All Columns) #8

1шт.

33

A22594

CAP

- tachometer drive (All Columns)

1шт.

34

A27968

RING

- tachometer drive cap (All Columns)

1шт.

Выбрано товаров: 36
