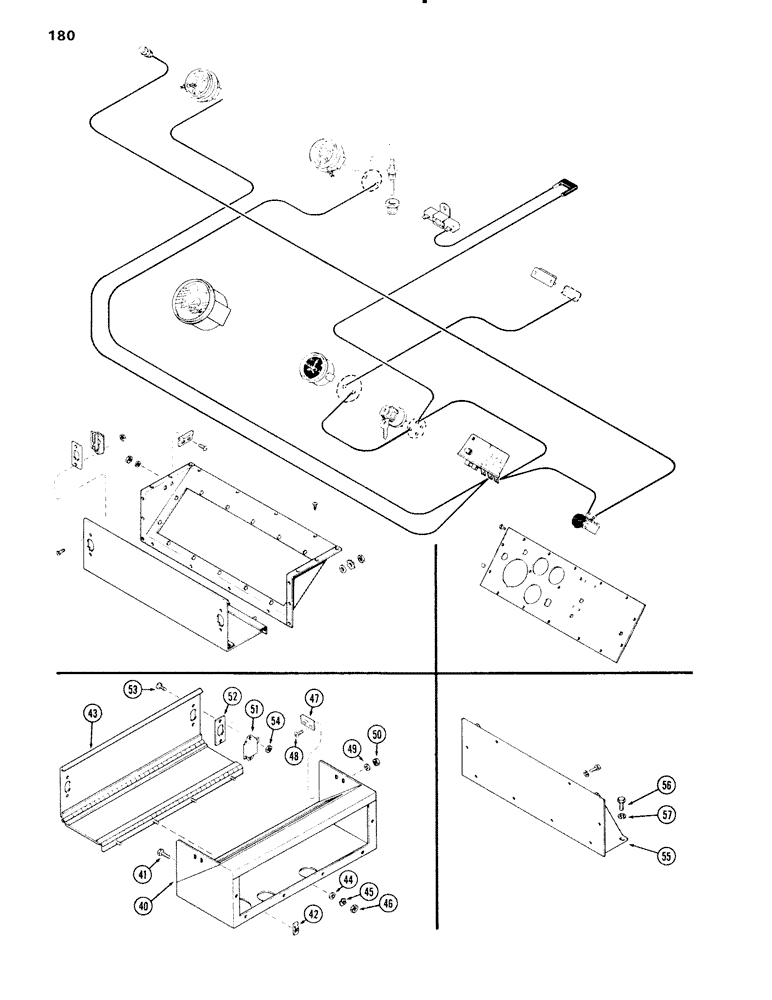

Запчасти Case IH 451BD (180) - INSTRUMENTS, COMPARTMENT & PANEL, SAFETY GAUGES, REAR PANEL OR FUEL TANK, G OR H, J OR K, L (04) - ELECTRICAL SYSTEMS

40

A65873

CABINET - instrument panel (Qty: J or K - 1) (Qty: L - 1)

1шт.

41

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Qty: J or K - 8) (Qty: L - 8) Hex Flg, 1/4"-20 x 1/2", Serr

1шт.

42

131-115

NUT

- 1/4" N.C. Tinnerman (Qty: J or K - 8)

1шт.

43

A65868

COVER - panel (Qty: J or K - 1) (Qty: L - 1)

1шт.

44

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (Qty: J or K - 4) (Qty: L - 4)

1шт.

45

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, (Qty: J or K - 4) (Qty: L - 4) Ext Tooth, 1/4"

1шт.

46

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Qty: J or K - 4) (Qty: L - 4)

1шт.

47

T32744

LATCH - cover (Qty: J or K -2) (Qty: L - 2)

1шт.

48

173-261

SCREW - #12 x 1/2" N.F. rd. hd. mach. (Qty: J or K - 4) (Qty: L - 4)

1шт.

49

192-17

LOCK WASHER,#12

Washer, Lock, (Qty: J or K - 4) (Qty: L - 4) #12

1шт.

50

129-18

NUT,#12-24

- #12 N.F. hex. (Qty: J or K - 4) (Qty: L - 4)

1шт.

51

T31759

LOCK - cover, R.H. (Qty: J or K - 1) (Qty: L - 1)

1шт.

51

T31758

LOCK - cover, L.H. (Qty: J or K - 1) (Qty: L - 1)

1шт.

52

T31757

SPACER - lock (Qty: J or K - 2) (Qty: L - 2)

1шт.

53

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.F. pan. hd. mach. (Qty: J or K - 4) (Qty: L - 4)

1шт.

54

131-29

LOCK NUT,#8-32, GB

NUT - #8 hex. Essna lock (Qty: J or K - 4) (Qty: L -4)

1шт.

55

A50885

BRACKET - instrument cabinet, open power unit - right side (Qty: L - 1)

1шт.

56

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(Qty: L - 4) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

57

92-6

LOCK WASHER,3/8"

(Qty: L - 4) 3/8"

1шт.
