Запчасти Case IH 451BD (178) - INSTRUMENTS, COMPARTMENT & PANEL, SAFTY GAUGES, G OR H, J OR K, L / HOOD, RIGHT SIDE & LEFT SIDE (04) - ELECTRICAL SYSTEMS

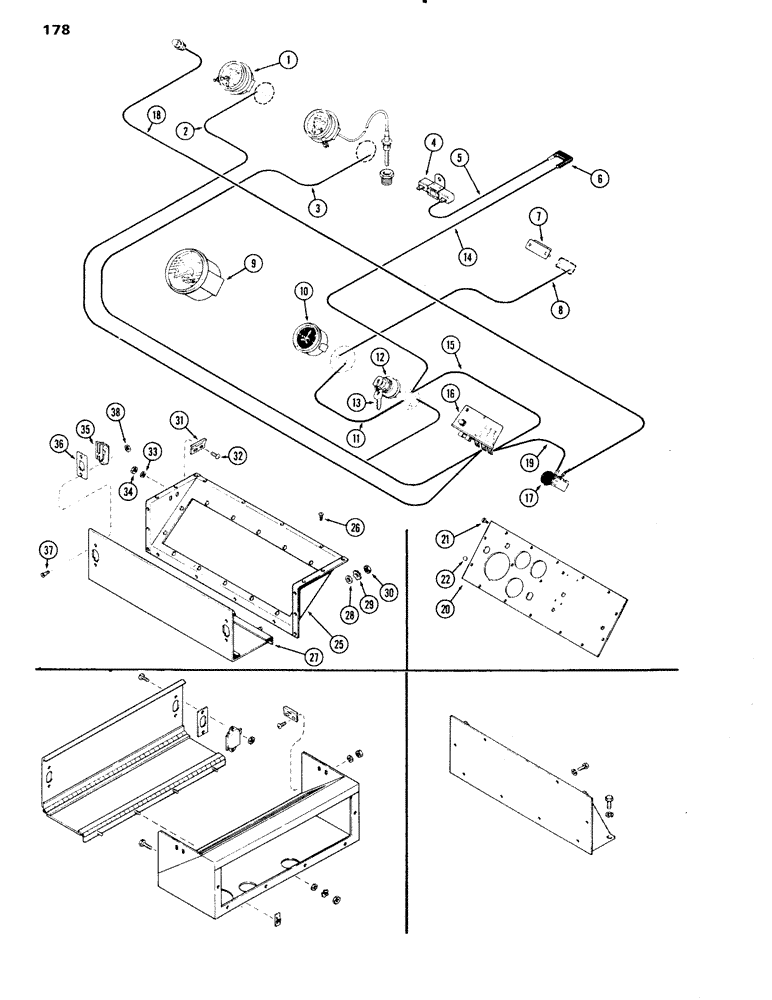

Схема запчастей Case IH 451BD - (178) - INSTRUMENTS, COMPARTMENT & PANEL, SAFTY GAUGES, G OR H, J OR K, L / HOOD, RIGHT SIDE & LEFT SIDE (04) - ELECTRICAL SYSTEMS
29
25
26
16
21
4
15
18
37
32
35
33
11
14
9
7
12
10
36
13
17
34
2
1
28
30
22
19
38
3
31
27
5
8
6
20

Артикул

Название

Примечание

Количество

1

A50877

GAUGE - engine oil pressure (All Columns)

1шт.

2

A65978

WIRE - safety sw. to oil press. ga. (All Columns)

1шт.

3

A64977

WIRE - safety sw. to temp. ga. (All Columns)

1шт.

4

F22316

RESISTOR,75 Ohms 0.2 Amps DC

(ALL Columns)

1шт.

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. pan hd. mach. (All Columns)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(All Columns) 5/16"-18, G5

1шт.

5

A65970

WIRE - diode to resistor ( All Columns)

1шт.

6

A61504

DIODE

DODE (All Columns)

1шт.

7

A22877

BREAKER,40A

- circuit, 40 amp. (All Columns)

1шт.

169-137

SCREW - #10 x 5/8" N.F. fill. hd. mach. (All Columns)

2шт.

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10 N.F. hex. keps (All Columns)

2шт.

8

A65977

WIRE - ammeter to circuit breaker (All Columns)

1шт.

9

A75831

TACHOMETER

(All Columns) (Replaces A11190)

1шт.

10

A55699

ELECTRICAL GAUGE

AMMETER (All Columns)

1шт.

11

A65975

WIRE - ign. sw. to ammeter (All Columns)

1шт.

12

A59693

SWITCH

- ignition (All Columns)

1шт.

13

A60319

KEY

S - ignition switch (All Columns)

1шт.

14

A65974

WIRE - ign. switch to diode (All Columns)

1шт.

15

A65976

WIRE - ign. sw. to safety sw. (All Columns)

1шт.

16

A23261

SWITCH

- relay safety (All Columns)

1шт.

17

A39887

SWITCH

- light (All Columns)

1шт.

A39888

NUT

- 3/8-32, light switch (All Columns)

2шт.

G13141

KNOB

- light switch (All Columns)

1шт.

18

A65971

LAMP - instrument panel (w/20" wire) (All Columns)

1шт.

19

A65976

WIRE - safety sw. to light sw. (All Columns)

1шт.

20

A65482

PANEL - instrument (All Columns)

1шт.

21

187-1011

SCREW - 1/4-20 x 3/8" pan hd. self-tapping (All Columns)

14шт.

22

205-14

HOLE PLUG BUTTON,3/8"

PLUG - button (all Columns) 3/8"

2шт.

25

A65865

FRAME - instrument panel (Qty: G or H - 1)

1шт.

26

187-1011

SCREW - 1/4-20 x 3/8" pan hd., self-tapping (Qty: G or H - 16)

1шт.

27

A65868

COVER - paner (Qty: G or H - 1)

1шт.

28

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (Qty: G or H - 4)

1шт.

29

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, (Qty: G or H - 4) Ext Tooth, 1/4"

1шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Qty: G or H - 4)

1шт.

31

T32744

LATCH - cover (Qty: G or H - 2)

1шт.

32

173-261

SCREW - #12 x 1/2" N.F. rd. hd. mach. (Qty: G or H -4)

1шт.

33

192-17

LOCK WASHER,#12

Washer, Lock, (Qty: G or H - 4) #12

1шт.

34

129-18

NUT,#12-24

- #12 N.F. hex. (Qty: G or H - 4)

1шт.

35

T31759

LOCK - cover, R.H. (Qty: G or H -1)

1шт.

35

T31758

LOCK - cover, L.H. (Qty: G or H - 1)

1шт.

36

T31757

SPACER - lock (Qty: G or H - 2)

1шт.

37

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.F. pan hd. mach. (Qty: G or H - 4)

1шт.

38

131-29

LOCK NUT,#8-32, GB

NUT - #8 hex. Esna lock (Qty: G or H - 4)

1шт.

Выбрано товаров: 43
