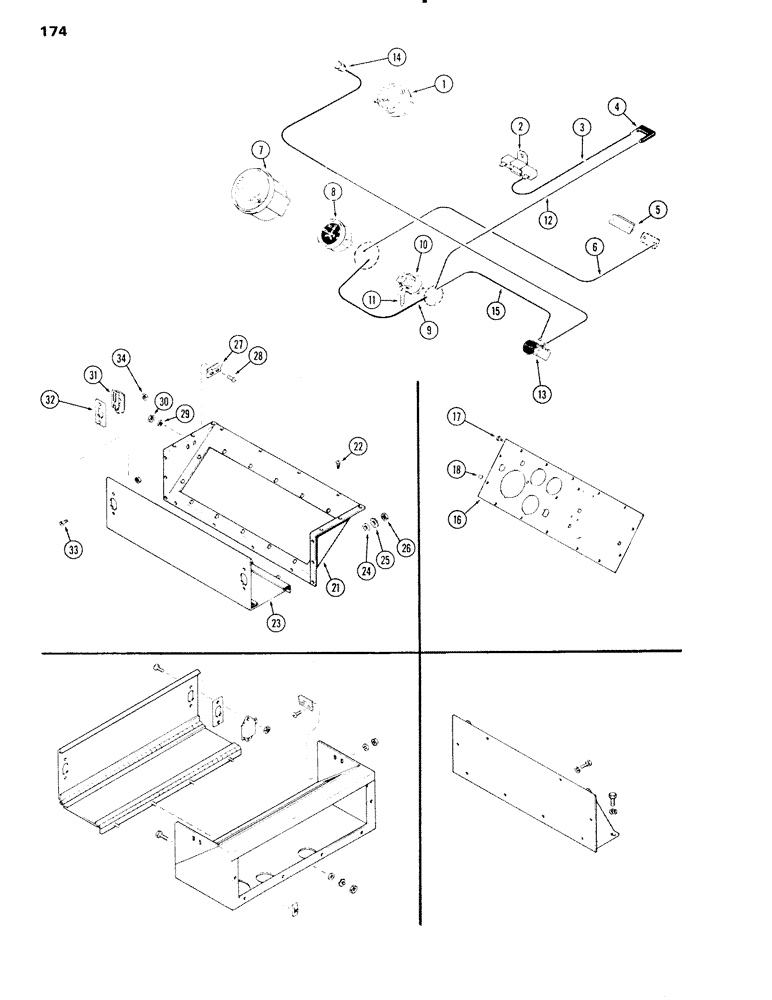

Запчасти Case IH 451BD (174) - INSTRUMENTS, COMPARTMENT & PANEL, STANDARD GAUGES, B OR C, D OR E, F / HOOD, RIGHT SIDE & LEFT SIDE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure (All columns)

1шт.

2

F22316

RESISTOR,75 Ohms 0.2 Amps DC

(All Columns)

1шт.

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N.C. pan hd. mach. (All Columns)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(All Columns) 5/16"-18, G5

1шт.

3

A65970

WIRE - diode to resistor (All Columns)

1шт.

4

A61504

DIODE

- lead (All Columns)

1шт.

5

A22877

BREAKER,40A

- circuit, 40 amp. (All Columns)

1шт.

169-137

SCREW - #10 x 5/8" N.F. fill. hd. mach. (All Columns)

2шт.

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10 N.F hex. keps (All Columns)

2шт.

6

A65977

WIRE - ammeter to circuit breaker (All Columns)

1шт.

7

A75831

TACHOMETER

(All Columns) (Replaces A11190)

1шт.

8

A55699

ELECTRICAL GAUGE

AMMETER (All Columns)

1шт.

9

A65975

WIRE - ign. sw. to ammeter (All Columns)

1шт.

10

A59693

SWITCH

- ignition (All Columns)

1шт.

11

A60319

KEY

- ignition (All Columns)

1шт.

12

A65974

WIRE - ign. switch to diode (All Columns)

1шт.

13

A39887

SWITCH

- light (All Columns)

1шт.

A39888

NUT

- 3/8-32, light switch (All Columns)

2шт.

G13141

KNOB

- light switch (All Columns)

1шт.

14

A65971

LAMP - instrument panel (w/20" wire)

1шт.

15

A65972

WIRE - ign, sw. to light sw. (All Columns)

2шт.

16

A65482

PANEL - instrument (All Columns)

1шт.

17

187-1011

SCREW - 1/4-20 x 3/8" pan hd. self-tapping (All Columns)

14шт.

18

205-5

PLUG - 1/4" button (All Columns) 1/4"

2шт.

18

205-14

HOLE PLUG BUTTON,3/8"

PLUG - button (All Columns) 3/8"

3шт.

21

A65865

FRAME - instrument panel (Qty: B or C - 1)

1шт.

22

187-1011

SCREW - 1/4-20 x 3/8" pan hd. self- tapping (Qty: B or C - 16)

1шт.

23

A65868

COVER - paner (Qty: B or C - 1)

1шт.

24

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (Qty: B or C - 4)

1шт.

25

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, (Qty: B or C - 4) Ext Tooth, 1/4"

1шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Qty: B or C - 4)

1шт.

27

T32744

LATCH - cover (Qty: B or C - 2)

1шт.

28

173-261

SCREW - #12 x 1/2" N.F. rd. hd. mach. (Qty: B or C - 4)

1шт.

29

192-17

LOCK WASHER,#12

Washer, Lock, (Qty: B or C - 4) #12

1шт.

30

129-18

NUT,#12-24

- #12 N.F. hex. (Qty: B or C - 4)

1шт.

31

T31759

LOCK - cover, R.H. (Qty : B or C - 1)

1шт.

31

T31758

LOCK - cover, L.H. (Qty: B or C - 1)

1шт.

32

T31757

SPACER - lock (Qty: B or C - 2)

1шт.

33

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.F. pan hd. mach. (Qty: B or C - 4)

1шт.

34

131-29

LOCK NUT,#8-32, GB

NUT - #8 hex. Esna lock (Qty: B or C - 4)

1шт.
