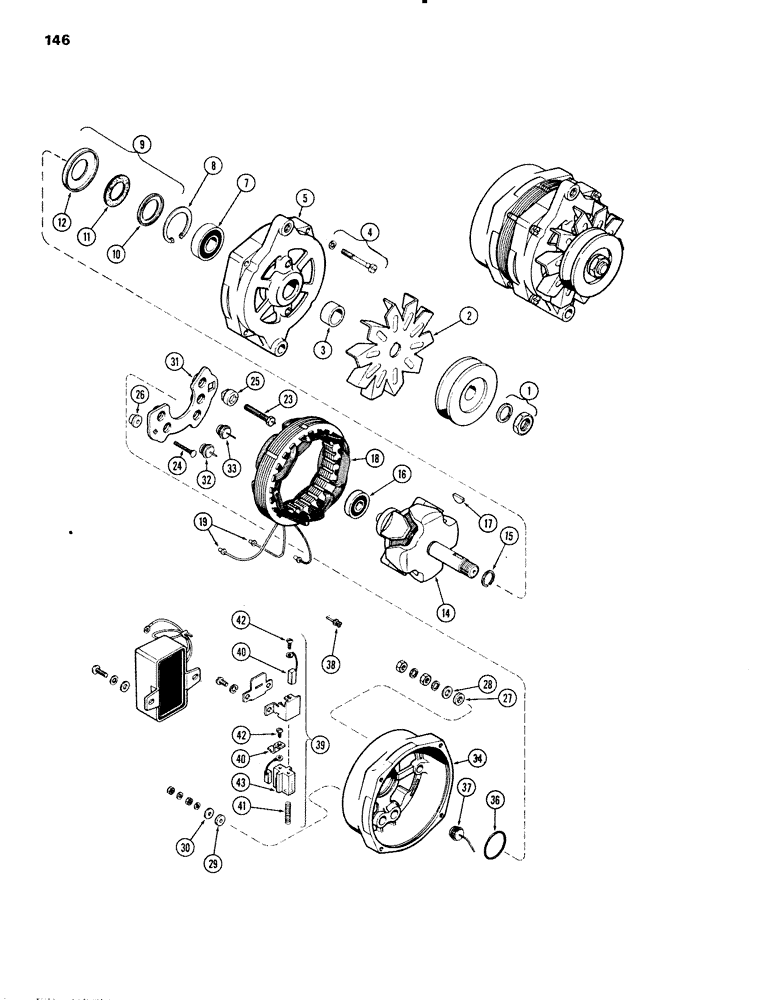

Запчасти Case IH 451BD (146) - ALTERNATOR AND REGULATOR, 12 VOLT, 55 AMP (04) - ELECTRICAL SYSTEMS

A61062

SPARE PART ALTERNATOR ASSY. - (Eltra #ALH-5307S) (Production Only)(Order A42444 alternator, A42267 pulley and A44543 regulator)

1шт.

A42444

ALTERNATOR

ALTERNATOR ASSY. - (for service w/o pulley or regulator)

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

451BD Diesel Power Unit, 451BDT Diesel Power Unit, 504BD Diesel Power Unit, 504BDT Diesel Power Unit

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT 35 AMP, Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A40581

KIT

KIT - nut & washer, rotor shaft

1шт.

2

A41066

FAN

FAN - ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41094

BOLT

KIT - thru bolt (Set of 4 w/washers)

1шт.

5

A44361

COVER

HEAD ASSY. - drive end

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

KIT - retainer

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seat

1шт.

14

A42269

SPARE PART

ROTOR ASSY.

1шт.

15

A25626

RING

RING - snap

1шт.

16

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball (sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42271

STATOR

STATOR ASSY.

1шт.

19

A41065

KIT

KIT - eyelet, wire end (Set of 6)

1шт.

A41080

KIT

KIT - terminal stud

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery term.

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, aux. terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - inaulating, battery term.

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, aux. terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

31

A42265

PLATE

HEAT SINK - diode

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive (Order A42265)

3шт.

33

A42261

DIODE

KIT - output diode (matched set of 2)

1шт.

34

A42442

COVER

HEAD ASSY. - slip ring end

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Set of 3)

1шт.

38

A42266

KIT

KIT - plugs (Set of 10)

1шт.

39

A43952

HOLDER

HOLDER ASSY. - brush

1шт.

40

A41063

BRUSH, COMMUTATOR

BRUSH KIT - armature brush (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.
