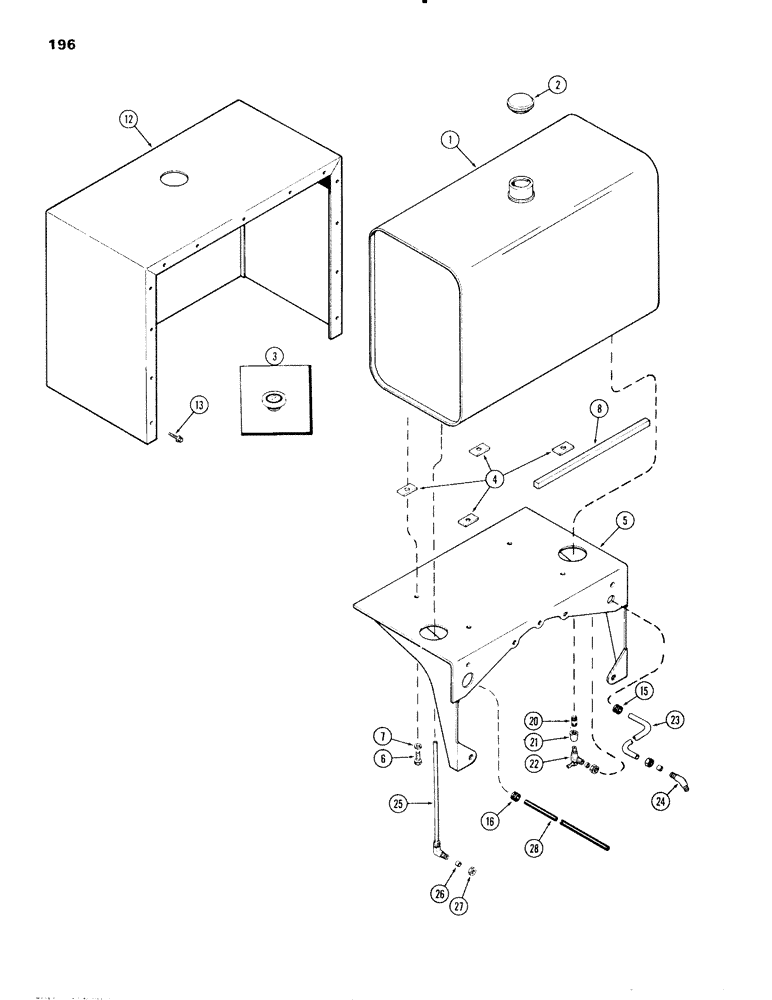

Запчасти Case IH 451BD (196) - FUEL TANK, B (03) - FUEL SYSTEM

1

A64685

TANK - fuel, 35 gal.

1шт.

2

A32119

CAP

- fuel tank

1шт.

3

A32120

CAP

- fuel tank, w/lock

1шт.

4

A65927

GASKET - fuel tank mounting

4шт.

5

A65935

SUPPORT - fuel tank

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

A64695

PAD - foam, mounting (use adhesive 345-19)

1шт.

12

A65933

COVER - fuel tank

1шт.

13

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

- 1/4 x 3/4" N.C. hex., sems

13шт.

15

49566

GROMMET

- fuel tank support, 3/8" I.D.

1шт.

16

S72150

GROMMET - fuel tank support, 1/4" I.D.

1шт.

20

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

BUSHING - 3/8" tube, 3/8" P.T.

1шт.

21

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducing, 3/8 to 1/4"

1шт.

22

217-278

FITTING

VALVE - 3/8" tube 1/4" P.T.

1шт.

23

A66119

TUBE - 3/8" O.D. nylon, 38" long

1шт.

24

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 3/8" tube x 1/4" P.T. 45deg. (in injection pump)

1шт.

25

A65220

TUBE ASSY. - fuel tank return port

1шт.

26

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

27

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

28

A66118

TUBE

- 1/4" O.D. nylon, 28" long

1шт.
