Запчасти Case IH 451BD (154) - ENGINE SUPPORTS, FRONT AND REAR, B, C, D (02) - ENGINE

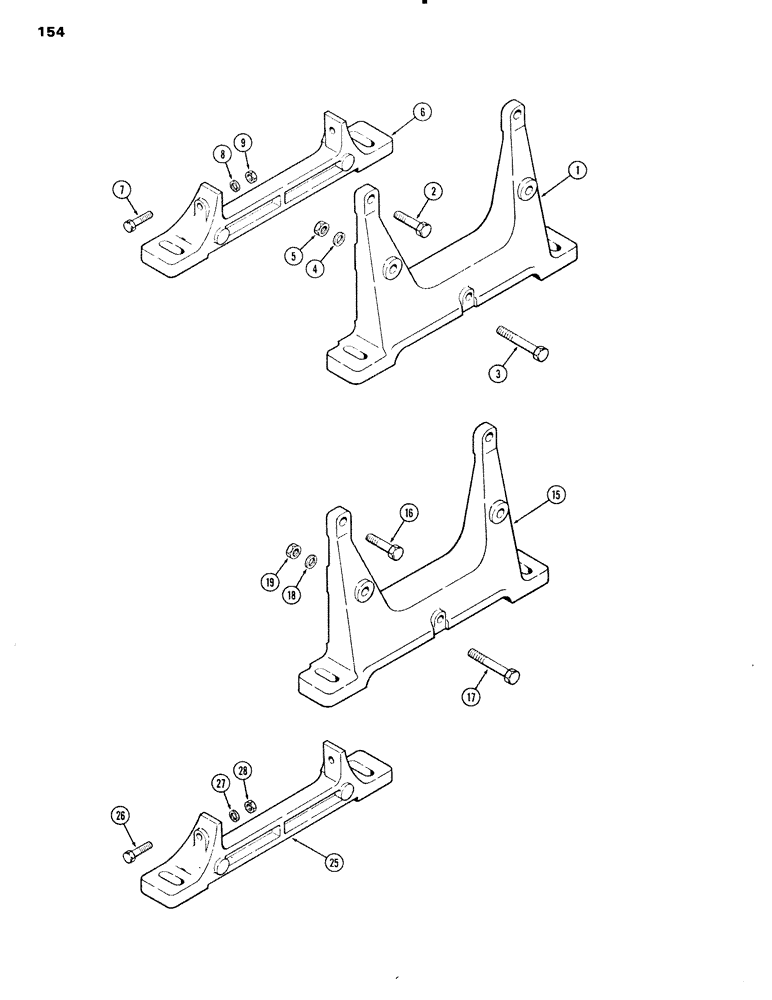

Схема запчастей Case IH 451BD - (154) - ENGINE SUPPORTS, FRONT AND REAR, B, C, D (02) - ENGINE
25
19
4
1
3
2
27
26
9
7
16
6
28
15
5
8
18
17

Артикул

Название

Примечание

Количество

1

A64212

SUPPORT - engine, front (Qty: B - 1)

1шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Qty: B - 2) Hex, 3/4"-10 x 3", G5

1шт.

3

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- 3/4 x 4-3/4" N. C. hex.(Qty: B - 2)

1шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Qty: B - 4) 3/4"

1шт.

5

25-1012

NUT,3/4"-10, G5

(Qty: B - 4) 3/4"-10, G5

1шт.

6

A26080

SUPPORT

- engine, rear (Qty: B - 1)

1шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex. (Qty: B - 2)

1шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (Qty: B - 2) 5/8"

1шт.

9

25-1010

NUT,5/8"-11, G5

(Qty: B - 2) 5/8"-11, G5

1шт.

15

A64212

SUPPORT - engine front only (Qty: C - 1)

1шт.

16

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Qty: C - 2) Hex, 3/4"-10 x 3", G5

1шт.

17

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- 3/4 x 4-3/4" N. C. hex. (Qty: C - 2)

1шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Qty: C - 4) 3/4"

1шт.

19

25-1012

NUT,3/4"-10, G5

(Qty: C - 4) 3/4"-10, G5

1шт.

25

A26080

SUPPORT

- engine, rear only (Qty: D - 1)

1шт.

26

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex. (Qty: D - 2)

1шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (Qty: D - 2) 5/8"

1шт.

28

25-1010

NUT,5/8"-11, G5

(Qty: D - 2) 5/8"-11, G5

1шт.

Выбрано товаров: 18
