Запчасти Case IH 451BD (082) - OIL FILTER AND HEAT EXCHANGER, ENGINE LESS FUEL DEVICE, 504BD AND 451BD NATURALLY ASPIRATED ENGINES (02) - ENGINE

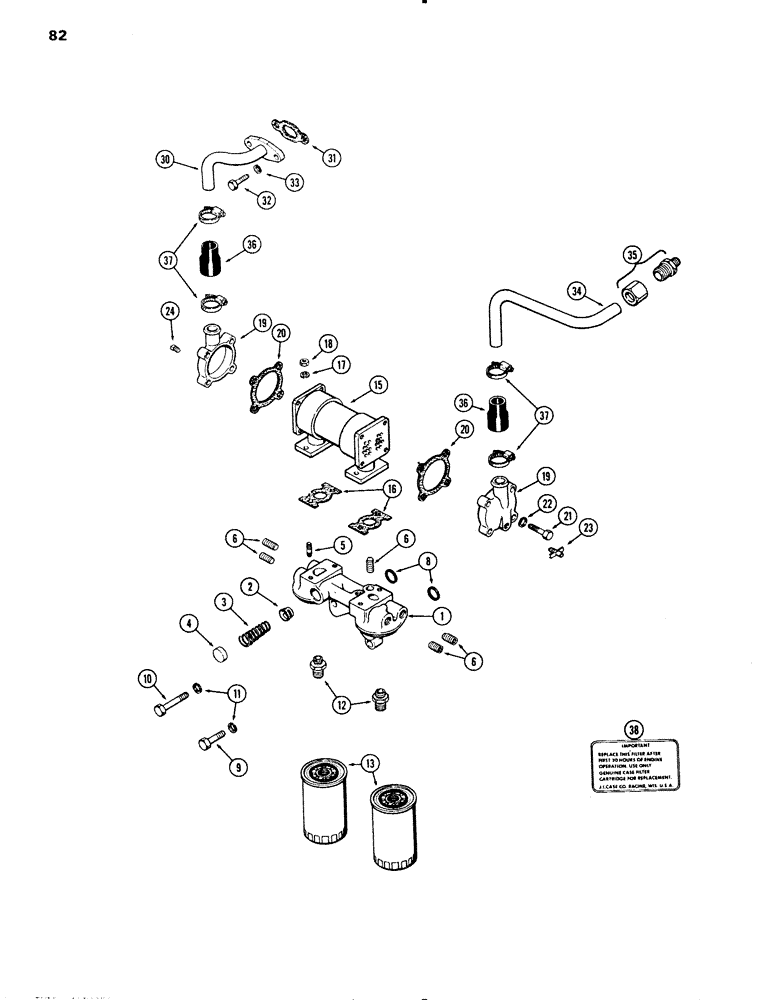

Схема запчастей Case IH 451BD - (082) - OIL FILTER AND HEAT EXCHANGER, ENGINE LESS FUEL DEVICE, 504BD AND 451BD NATURALLY ASPIRATED ENGINES (02) - ENGINE
17
9
6
24
3
36
10
22
30
16
6
5
19
35
15
19
6
8
18
20
36
32
34
37
12
21
2
13
38
4
20
1
11
31
37
33
23

Артикул

Название

Примечание

Количество

1

A64107

BASE

ASSY. - oil filter

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup

1шт.

5

G11204

STUD

- 3/8" hex. N.C. x 1-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" hex. sckt. hd., pipe

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex.

1шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

A64454

ADAPTER

-, Serial Range: element-base

2шт.

13

A64453

ENGINE OIL FILTER

ELEMENT - filter, oil

2шт.

15

A63917

COOLER

HEAT EXCHANGER - oil

1шт.

16

A65359

GASKET

- heat exchanger

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

19

A64349

HOOD

BONNET - heat exchanger ends

2шт.

20

A63920

GASKET

- bonnet

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

DRAINCOCK - heat exchanger

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" sq. hd. pipe

1шт.

30

A64350

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

A64352

TUBE

- heat exchanger

1шт.

35

222-2020

FITTING

CONNECTOR - 1" tube, 3/4" P.T.

1шт.

36

A64353

HOSE

- bonnets to water tubes

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

4шт.

38

321-367

DECAL

- oil filter

1шт.

Выбрано товаров: 31
