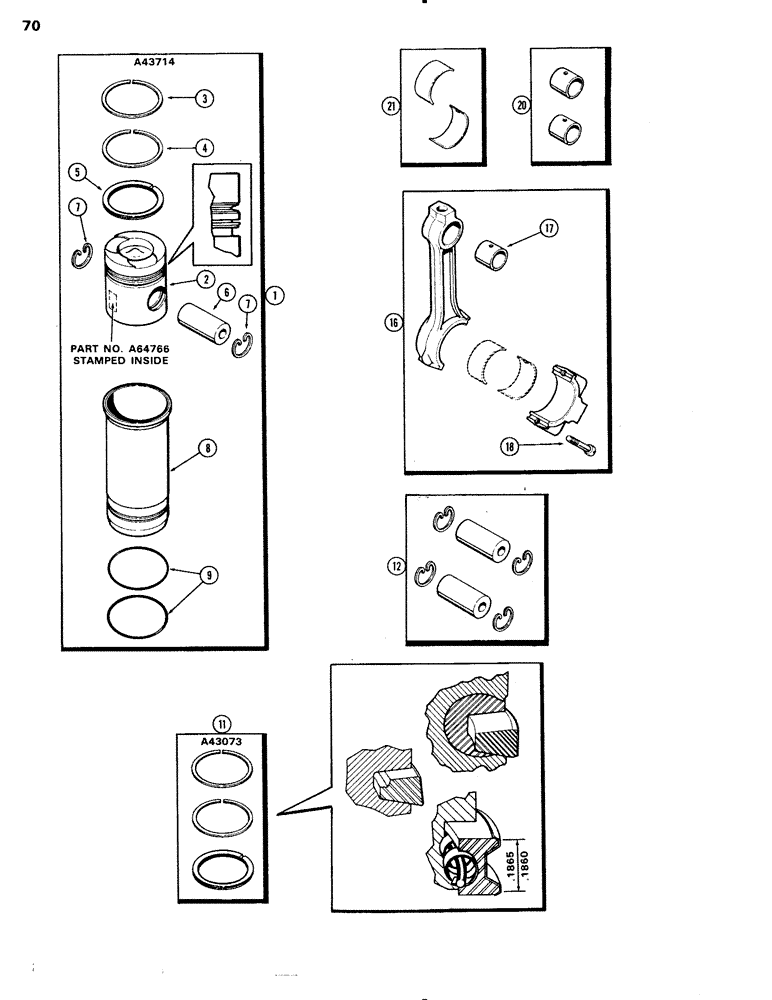

Запчасти Case IH 451BD (070) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 451BD NATRUALLY ASPIRATED ENGINES (02) - ENGINE

1

A43714

KIT

PISTON & SLEEVE KIT - (Set of 2)

3шт.

2

A64766

PISTON

- cylinder, 4-3/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A59093

SLEEVE

- piston (cylinder liner)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

A43074

RING, SET

RING KIT - re-ring (Set of 6)

1шт.

11

A43073

RING

KIT - re-ring (Set of 1)

6шт.

12

A43713

PIN

KIT - w/retaining rings (Set of 2)

3шт.

16

A62952

ROD

ASSY. - connecting

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A43173

BEARING LINER

INSERT KIT - connecting rod bearing (Std.)

6шт.

21

A43174

BEARING LINER

INSERT KIT - connecting rod bearing (-.002")

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing (-.010")

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing (-.020")

6шт.

21

A43177

BEARING LINER

INSERT KIT - connecting rod bearing (-.030")

6шт.
