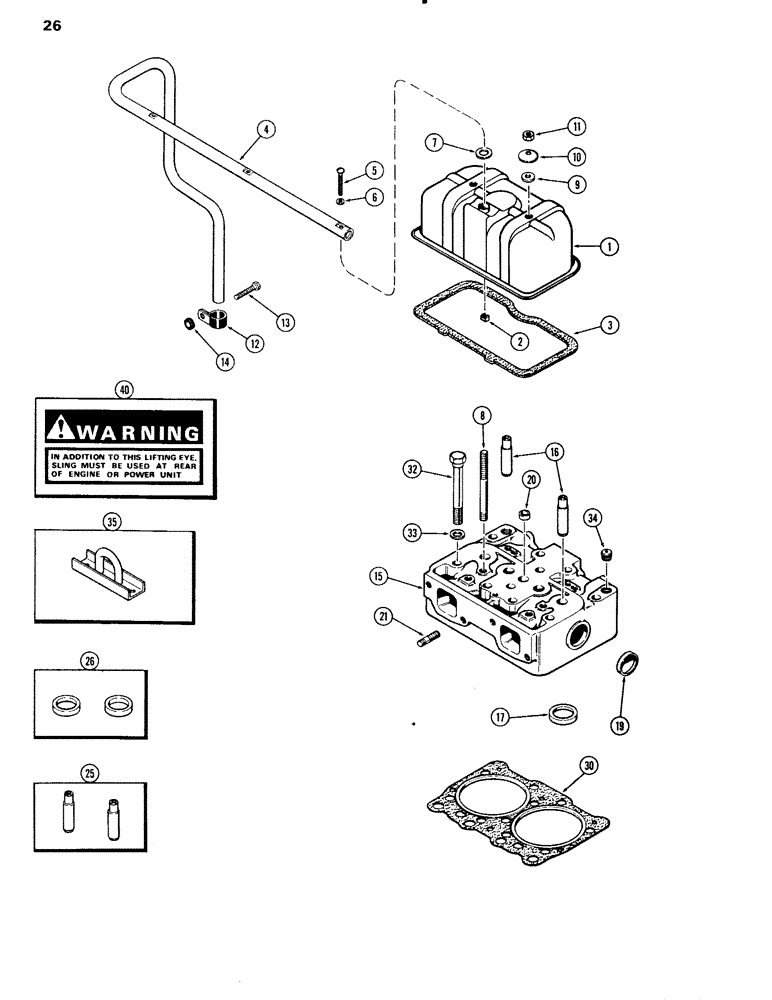

Запчасти Case IH 451BD (026) - CYLINDER HEAD AND COVER, ENGINE LESS FUEL DEVICE, 451BD NATURALLY ASPIRATED ENGINES (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A58928

CYLINDER HEAD GASKET

- cover

3шт.

4

A65433

TUBE

- breather

1шт.

5

75-440

SCREW

- 1/4 x 2-1/2" N.C. rd. hd., mach.

3шт.

6

A34133

GASKET

- breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

8

A60885

STUD

- rocker arm brkt. & cyl. hd. cover

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

12

D34033

CLAMP

- breather tube

1шт.

13

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

1шт.

14

A64261

SPACER

1шт.

15

A58867

CYLINDER

HEAD ASSY. - cylinder

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - (Order ref. 25)

4шт.

17

.NSS

INSERT - exhaust (Order ref. 26)

2шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup

2шт.

20

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup

1шт.

21

A59077

STUD

- 3/8" N.C. x 1-13/16"

24шт.

25

A41781

GUIDE

KIT - (Set of 2)

6шт.

26

A57485

INSERT

KIT - exhaust (Set of 2)

3шт.

30

A64105

CYLINDER HEAD GASKET

- cylinder head, w/fire rings

3шт.

32

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex.

30шт.

33

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

34

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

6шт.

35

A64941

BRACKET - engine lifting

1шт.

40

321-2538

DECAL - warning, lifting eye

1шт.
