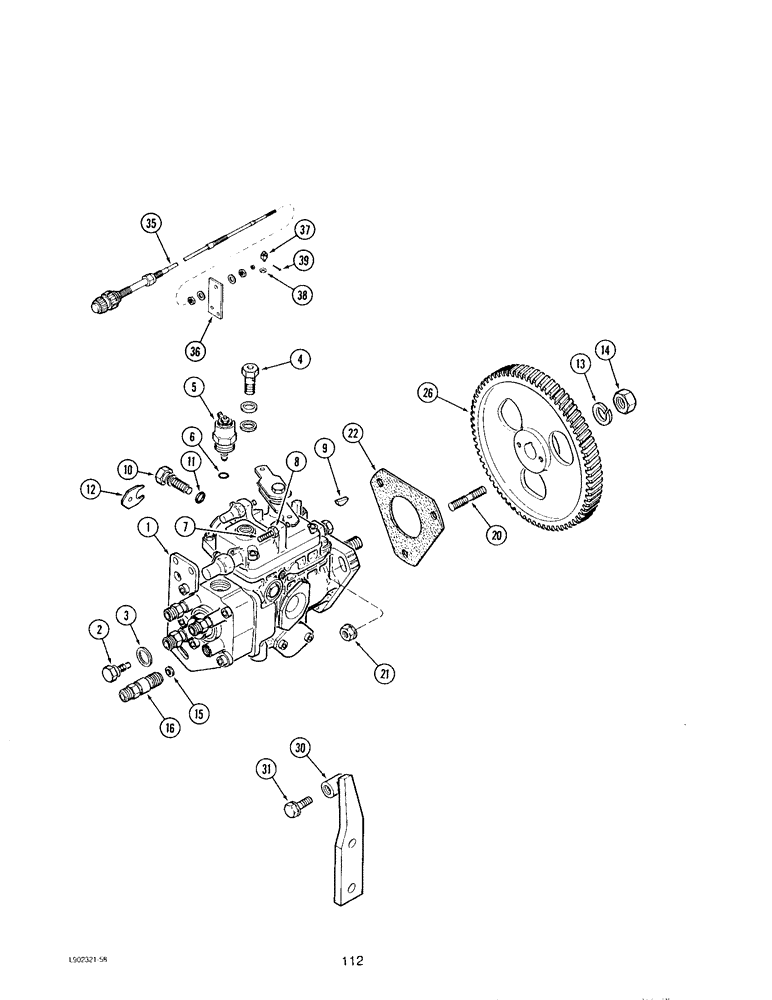

Запчасти Case IH 4390T (112) - FUEL INJECTION PUMP AND DRIVE, 4T-390 ENGINE

1

J914487

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new

1шт.

2

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

3

J903573

GASKET

- vent screw

1шт.

4

J905465

BANJO BOLT

SCREW - overflow, banjo

1шт.

5

J903575

SOLENOID

ASSEMBLY - shut down, 12 volt

1шт.

6

J903577

SEAL

- solenoid

1шт.

7

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

8

J904783

NUT

- idle screw

1шт.

9

J902332

KEY

- retainer, pump gear

1шт.

10

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

- timing lock

1шт.

11

J904785

O-RING,8 mm ID x 2.5 mm

- timing lock screw

1шт.

12

J904786

PLATE

- timing lock

1шт.

13

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

14

J903738

NUT

- hex, 14 mm

1шт.

15

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

- delivery valve

4шт.

16

NSS

NOT SOLD SEPARAT

VALVE - delivery

4шт.

20

J902501

STUD

- mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

- hex flange, 8 mm

3шт.

22

J914389

GASKET

- pump mounting

1шт.

26

J912885

PINION

GEAR - pump drive

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

3шт.

35

1347679C1

CABLE

ASSEMBLY - speed control, engine

1шт.

36

1347676C1

SUPPORT

- cable

1шт.

37

D92852

PIVOT

- cable, throttle

1шт.

38

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

39

32-412

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.
