(108) - FUEL FILTER, 4-390 AND 4T-390 ENGINE

Запчасти Case IH 4390T (108) - FUEL FILTER, 4-390 AND 4T-390 ENGINE

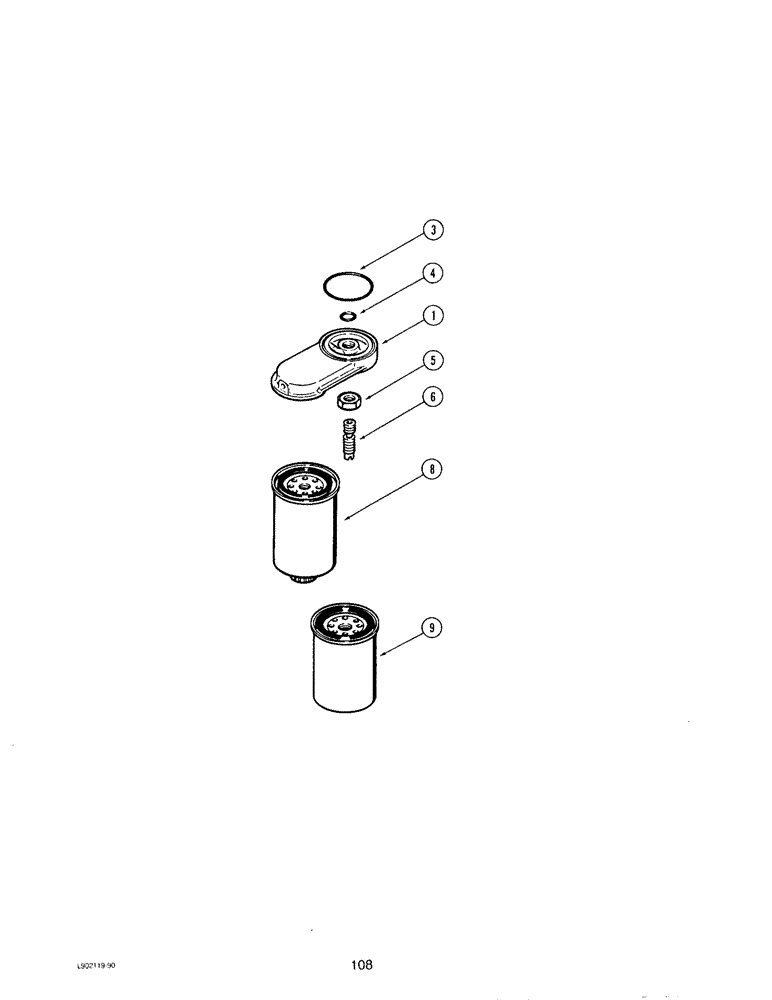

Схема запчастей Case IH 4390T - (108) - FUEL FILTER, 4-390 AND 4T-390 ENGINE
3
6
9
8
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

Выбрано товаров: 7
