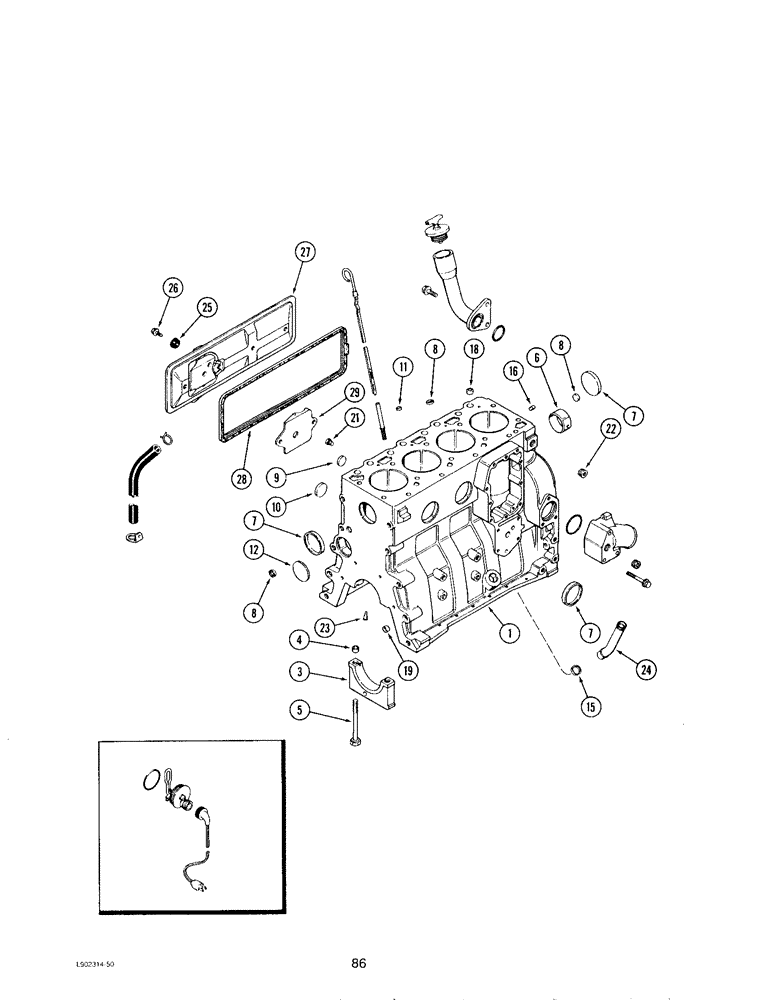

Запчасти Case IH 4390T (086) - CYLINDER BLOCK, 4T-390 ENGINE

A174316

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, new (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

A174352

BASIC ENGINE

ENGINE ASSEMBLY - basic, new (Includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil filler and dipstick, fuel injection pump, injectors and lines, front

1шт.

.

return engine assembly core for credit)

1шт.

AR174352

ENGINE, EXCHANGE

Engine (Exchange) Engine Assembly - basic, remanufactured

1шт.

AC174352

CORE-ENGINE

Return Part Number - basic engine (Use this part), Start Serial: number

1шт.

.

crank pulley, belt tensioner and turbocharger)

1шт.

J905378

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New)(Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit)

1шт.

JR905378

BLOCK

Block Assembly - short, engine, remanufactured

1шт.

JC905378

CORE-ENGINE

Return Part Number - short block (use this part number to return short block core for credit)

1шт.

JR933236

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J905376

CRANKCASE

BLOCK ASSEMBLY - stripped, engine (Also order J905813 kit)

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft front (See Page 81)

1шт.

7

J900965

PLUG

PLUG - expansion, 58 mm OD

4шт.

8

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

9

A77539

PLUG

PLUG - expansion, 26 mm

2шт.

J905813

PACKAGE, REPAIR

HARDWARE KIT - block

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

12

J900687

PLUG

PLUG - expansion, (Welch),60 mm OD

1шт.

REF#12-PLUG J900687 USE O/RING J926047 WITH IT

1шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 PT

1шт.

23

J901020

NOZZLE CAP

NOZZLE - piston cooling

4шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 16 mm

2шт.

27

J916441

COVER

COVER - tappet

1шт.

28

J904056

GASKET

GASKET - tappet cover

1шт.

29

J907586

BAFFLE

BAFFLE - tappet cover

1шт.
