Запчасти Case IH 4390T (066) - TURBOCHARGER SYSTEM, 4T-390 ENGINE

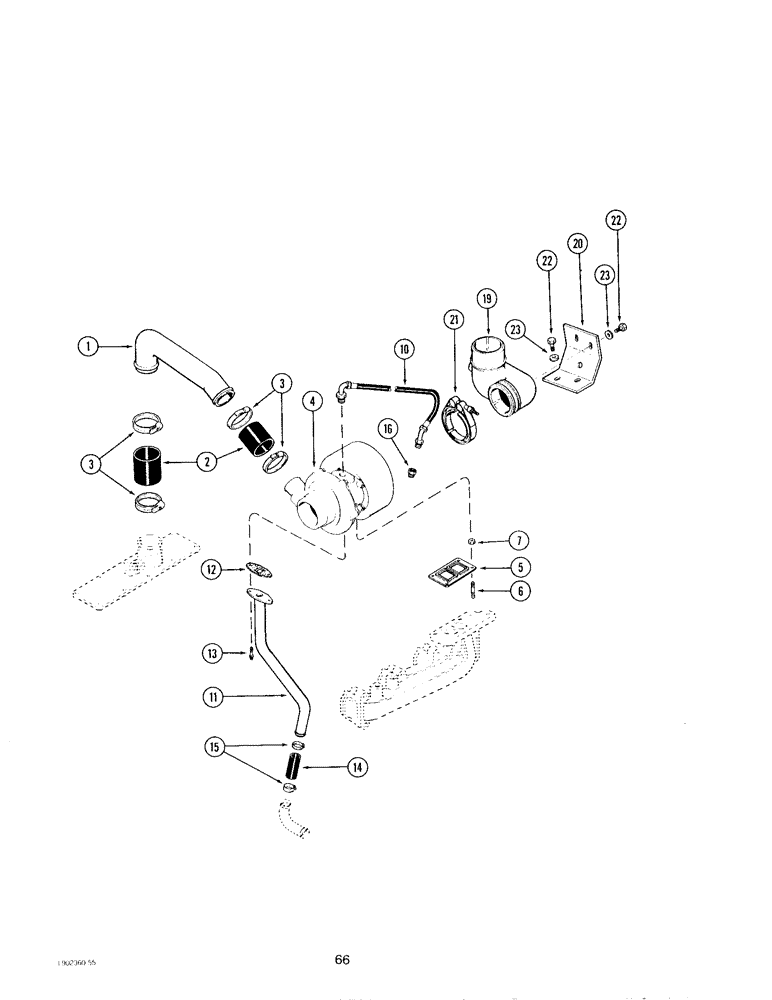

Схема запчастей Case IH 4390T - (066) - TURBOCHARGER SYSTEM, 4T-390 ENGINE
22
12
3
5
23
1
15
6
20
10
21
16
2
7
23
22
11
19
4
3
13
14

Артикул

Название

Примечание

Количество

1

J906623

TUBE,2 mm OD x 299.8 mm L

- crossover

1шт.

2

J916166

INTAKE AIR HOSE

HOSE - air intake

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Page 69)

1шт.

5

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

6

J905417

STUD

- mounting, turbocharger

1шт.

7

J901961

NUT

- hex, stud

4шт.

10

J913759

HOSE

Turbocharger Oil Supply

1шт.

11

J903740

TUBE

- turbocharger oil drain

1шт.

12

J914388

GASKET

- drain tube

1шт.

13

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

14

J903745

LARGE HOSE

HOSE - drain, turbocharger oil

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

A77457

FITTING

CONNECTOR - supply hose

1шт.

19

A170987

ELBOW

- exhaust, turbocharger

1шт.

20

A172235

BRACKET

- mounting, elbow

1шт.

21

A170467

CLAMP,72mm ID

ASSEMBLY - retaining, elbow

1шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

Выбрано товаров: 19
