Запчасти Case IH 4390 (124) - ALTERNATOR ASSEMBLY

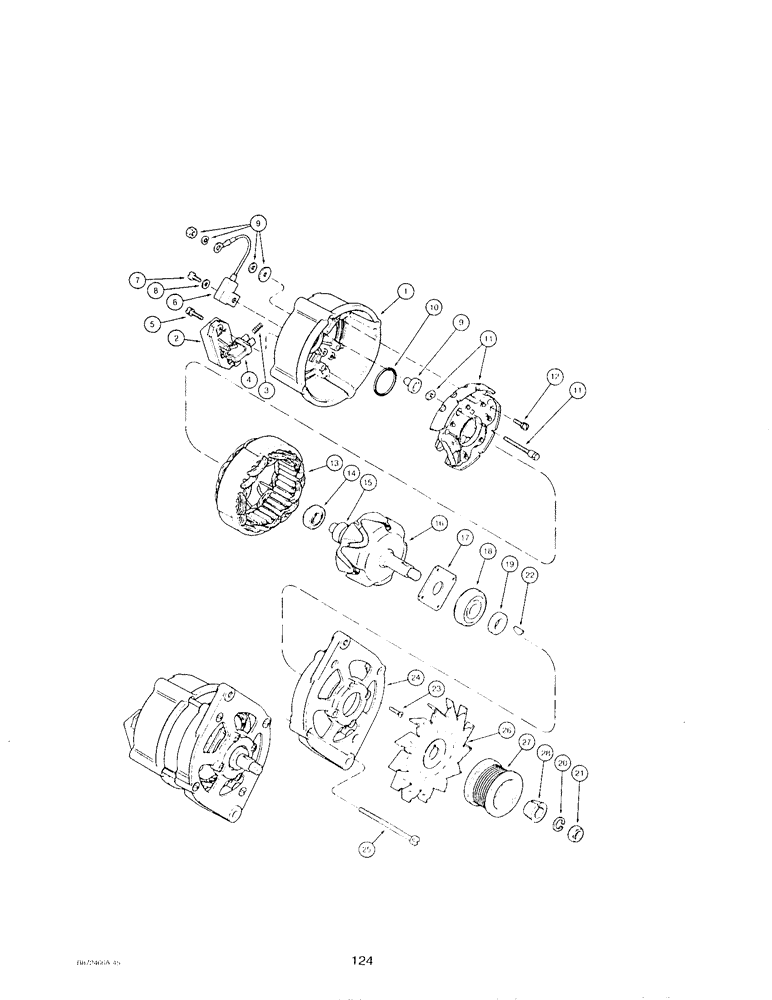

Схема запчастей Case IH 4390 - (124) - ALTERNATOR ASSEMBLY
1
14
22
10
27
18
17
24
11
2
3
26
???
2
11
15
4
9
12
16
5
20
8
21
23
13
6
19
7
9

Артикул

Название

Примечание

Количество

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 65 ampere

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

1

A186187

HOUSING

HOUSING - collector ring end

1шт.

2

A186189

REGULATOR

REGULATOR - voltage

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

4

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY - alternator

1шт.

5

A186194

SCREW,M4 x 18mm

SCREW, hex retaining, regulator

2шт.

6

A186195

CAPACITOR

CAPACITOR - alternator

1шт.

7

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

SCREW - fillister head, capacitor retaining

1шт.

8

A186196

WASHER

WASHER - flat, capacitor screw

1шт.

9

3079135R1

TERMINAL CONNECTOR

HARDWARE KIT - terminal

1шт.

10

3079386R1

O-RING

O-RING - sealing, bearing

1шт.

11

A186197

RECTIFIER

BRIDGE ASSEMBLY - rectifier, alternator

1шт.

12

A186188

SCREW

BOLT ASSEMBLY - hex retainer, bridge

3шт.

13

A186192

STATOR

STATOR ASSEMBLY - alternator

1шт.

14

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor

1шт.

15

A186185

RING

RING - collector

1шт.

16

A186184

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

17

3078379R1

COVER

PLATE - bearing retaining, end cover

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor drive end

1шт.

3078897R1

SET OF PARTS

RETAINER KIT - rotor

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex retainer, pulley

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - retainer (Not used in this application)

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - retainer, bearing plate

4шт.

24

A186182

HOUSING

HOUSING - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - slotted, housing retainer

4шт.

26

221425R1

FAN

FAN - alternator

1шт.

27

J908560

PULLEY

PULLEY - alternator drive

1шт.

28

J908563

RETAINER

RETAINER - pulley, alternator

1шт.

Выбрано товаров: 33
