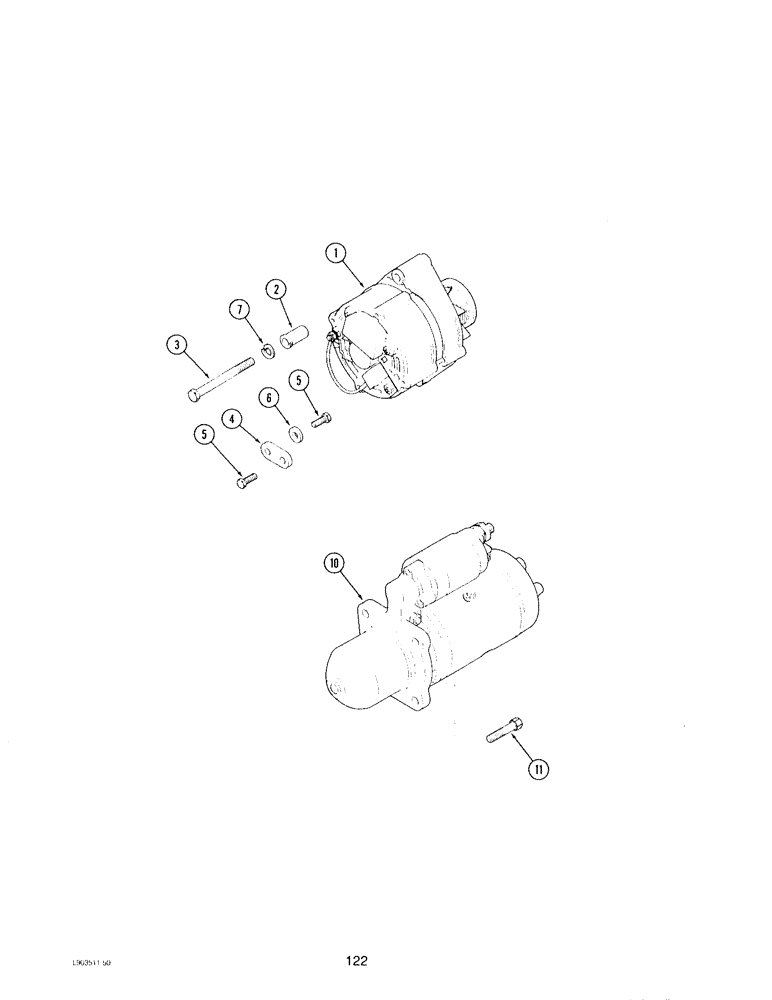

Запчасти Case IH 4390 (122) - ALTRENATOR MOUNTING

1

REF

INSTRUCTION

ALTRENATOR ASSEMBLY - engine (See page 125)

1шт.

2

J902469

SPACER

- alternator mounting

1шт.

3

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 mm x 100 mm

1шт.

4

J903089

SUPPORT

BRACE - alternator mounting

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, brace bolt

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See page 127 or 129)

1шт.

11

30976R1

12 PT SCREW,M10 x 40mm, Cl 12.9

BOLT - 12 point head flange, 10 mm - 1.5 x 40 mm (Replaces 30967R1)

3шт.
