Запчасти Case IH 4390 (104) - FUEL INJECTION SYSTEM, 4-390 ENGINE

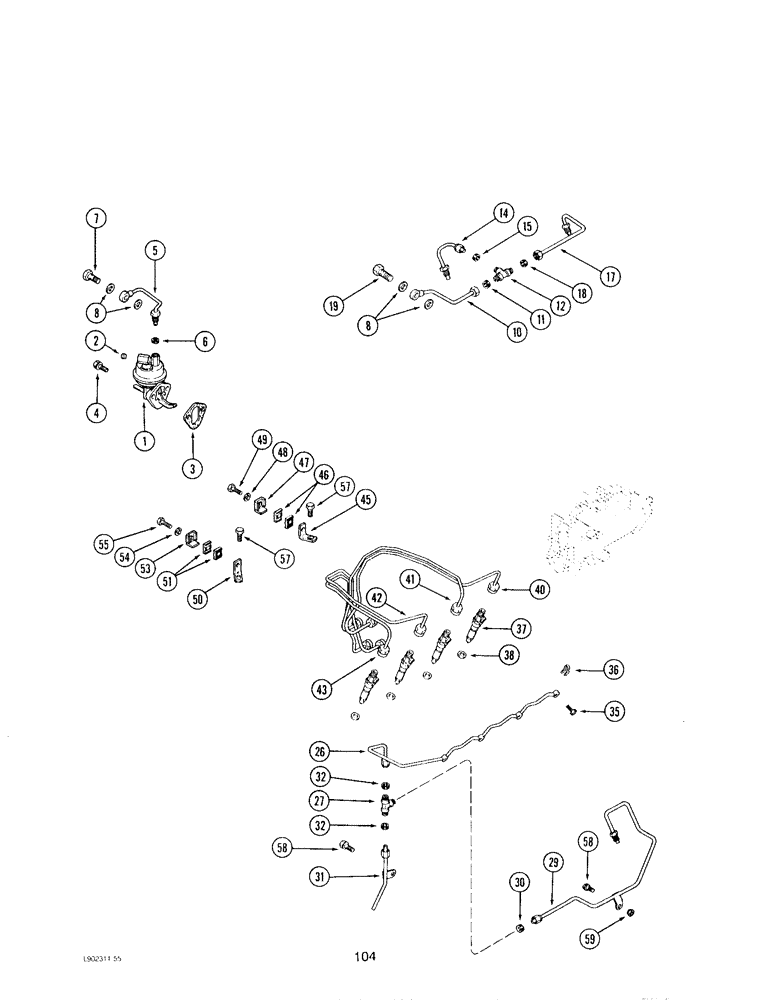

Схема запчастей Case IH 4390 - (104) - FUEL INJECTION SYSTEM, 4-390 ENGINE
41
31
6
8
4
8
19
46
59
54
14
43
35
2
51
57
27
18
7
11
36
32
15
32
45
26
58
42
49
58
57
1
29
55
5
10
30
38
12
40
50
17
53
3
48
37
47

Артикул

Название

Примечание

Количество

1

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

2

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - square socket, 1/4 inch PT

1шт.

3

J914304

GASKET

- mounting, lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel, lift pump to filter

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - tube

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

8

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

4шт.

10

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

11

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

12

222-123

TEE,5/16" Flex Tubing

Assy - Union, 9/16-24 inch NF thread 5/16" Flex Tubing

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - hex, 1/2-24 inch thread (Discard before assembly)

3шт.

14

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

1шт.

15

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

17

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, tee to front of injection pump

1шт.

18

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

19

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY - fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Assy - Union

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex (Discard before assembly) 3/8"-24, 45º Fl, Comp

3шт.

29

J905703

FUEL TUBE,4.76 mm OD x 661 mm L

TUBE ASSEMBLY - fuel return, tee to pump

1шт.

30

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

31

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank

1шт.

32

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

36

J903380

SEAL

- connector

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Page 115)

4шт.

38

J900808

SEAL

- injector

4шт.

40

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

41

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

42

J903524

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

43

J903525

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 1 and 2

1шт.

45

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

46

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

47

NSS

NOT SOLD SEPARAT

PLATE - clamp, fuel tube

1шт.

48

J903723

WASHER

- flat, 6 x 10 x 1 mm

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 3 and 4

1шт.

50

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

51

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

53

NSS

NOT SOLD SEPARAT

PLATE - clamp, fuel tube

1шт.

54

J903723

WASHER

- flat, 6 x 10 x 1 mm

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

57

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- hex special

2шт.

58

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

2шт.

59

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

Выбрано товаров: 47
