Запчасти Case IH 4390 (102) - PTO CLUTCH

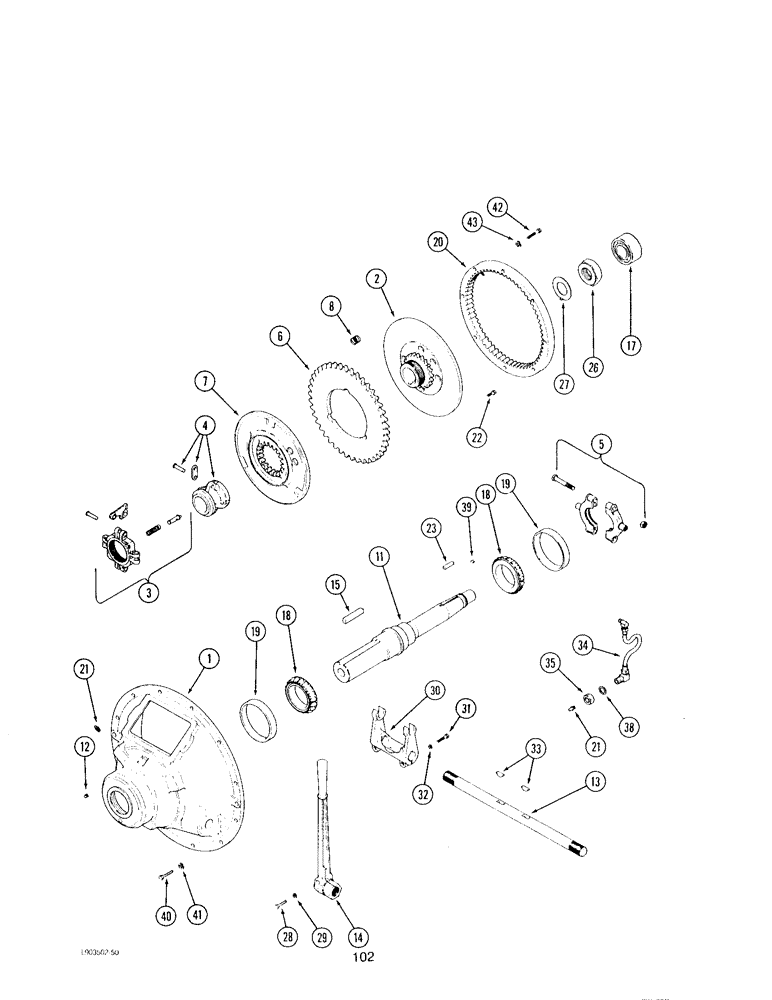

Схема запчастей Case IH 4390 - (102) - PTO CLUTCH
5
29
38
40
22
11
23
3
35
19
43
21
18
19
31
32
18
1
27
20
13
41
17
14
34
6
21
28
12
8
2
30
33
26
7
4
42
15
39

Артикул

Название

Примечание

Количество

1347632C1

CLUTCH

ASSEMBLY - PTO, 10 inch

1шт.

1

A44289

HOUSING

- clutch

1шт.

2

A44296

PLATE

- hub and back

1шт.

3

A40189

YOKE

ASSEMBLY - adjusting

1шт.

The part showing above the round part with ears is A31134.

1шт.

A31134

LEVER

1шт.

4

A40191

SLEEVE

ASSEMBLY - sliding

1шт.

A31137

DRAG LINK

PTO Clutch Lever

1шт.

A40192

AXLE PIN,8mm OD x 26.16mm L

PTO Lever Link

1шт.

A43382

PIN, SPLIT (COTTER)

Lever Link

1шт.

5

A31140

COLLAR

ASSEMBLY - clutch sleeve

1шт.

6

1347798C1

PLATE

- driving

1шт.

7

A44298

PLATE

- floating

1шт.

8

A10441

SPRING

- release

6шт.

11

A44290

SHAFT

- clutch

1шт.

12

444691

PLUG

- hex socket, 1/4 inch PT

1шт.

13

37346D

SHAFT

- operating

1шт.

14

1347799C1

LEVER

- hand, clutch

1шт.

15

A40305

KEY

- square, 3/8 x 2-1/2 inch

1шт.

17

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

BEARING ASSEMBLY - pilot

1шт.

18

ST2026

BEARING ASSY,63.5mm ID x 21.996mm

CONE - bearing

2шт.

19

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

2шт.

20

A44293

RING

-driving

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

3шт.

22

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

23

Q67

KEY,1/4" Sq x 1 1/8", Par

- square, 1/4 x 1-1/8 inch

1шт.

26

A40184

NUT

- hub

1шт.

27

A9273

LOCK WASHER

- lock, hub nut

1шт.

28

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

29

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - lock, 5/16 inch

1шт.

30

B50820

FORK

YOKE - throwout

1шт.

31

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

2шт.

32

193-78

LOCK WASHER,3/8"

WASHER - internal tooth lock, 1/4 inch

2шт.

33

A44148

KEY

- No.15 Woodruff

2шт.

34

1347801C1

HOSE

ASSEMBLY - flexible

1шт.

35

25-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NF

1шт.

38

193-84

LOCK WASHER,5/8"

WASHER - lock, 5/8 inch

1шт.

39

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - hex socket set, 5/16 NC x 5/16 inch

1шт.

40

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

41

892-11010

LOCK WASHER,M10

12шт.

42

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

43

492-11038

LOCK WASHER,3/8"

8шт.

Выбрано товаров: 42
