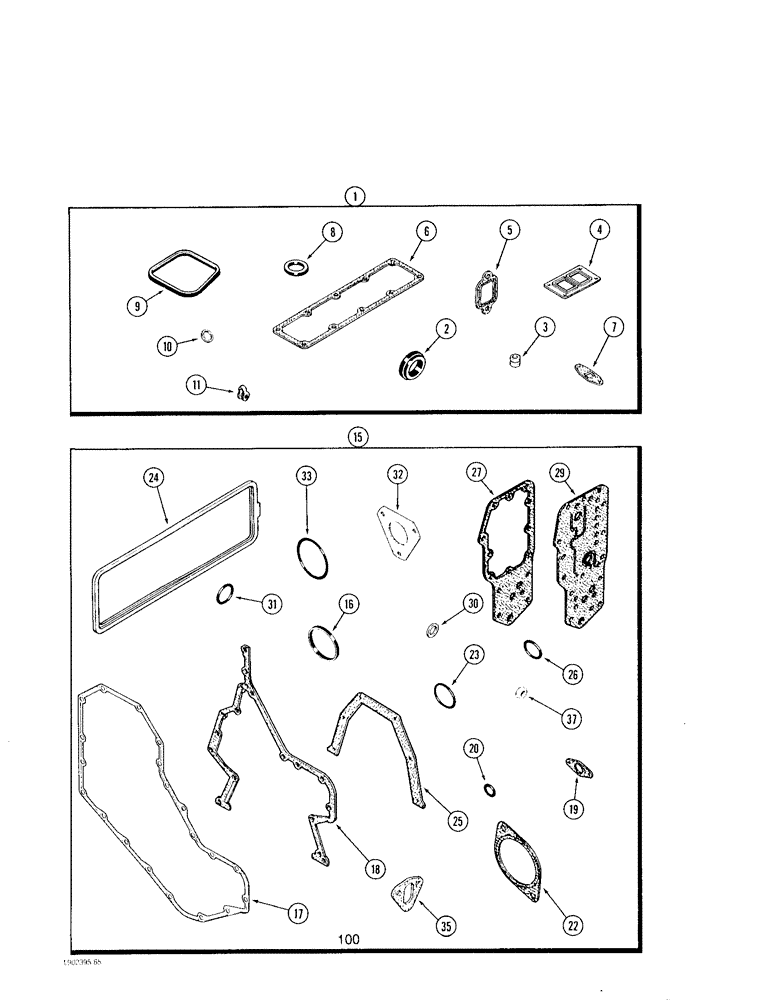

Запчасти Case IH 4390 (100) - ENGINE GASKET KITS, 4-390 AND 4T-390 ENGINES, VALVE GRIND

1

A77672

GASKET KIT

- valve grind, engine (See Note A)

1шт.

2

J903301

GASKET

- thermostat

1шт.

3

J901097

SEAL

- valve

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

- injector

4шт.

11

J903380

SEAL

- connector

4шт.

15

A77671

GASKET KIT

- engine block (See Note B)

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

17

J914385

GASKET,1.02mm Thk

-, Serial Range: cover-housing

1шт.

18

J916131

GASKET

- gear housing

1шт.

19

J905595

GASKET

- pin housing

1шт.

20

J913994

O-RING

- sealing

1шт.

22

J913192

GASKET

- cover plate

1шт.

Item 22. Order J929751 in this application

1шт.

23

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- sealing

1шт.

24

J904056

GASKET

- tappet cover

1шт.

25

J914386

GASKET

- seal retainer

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

27

J918256

GASKET

- cooler core

1шт.

29

J918257

GASKET

- filter head

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

1шт.

32

J914389

GASKET

- fuel pump

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

35

J914304

GASKET

- fuel lift pump

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt

4шт.
