Запчасти Case IH 4390 (096) - PISTONS, 4-390 ENGINE

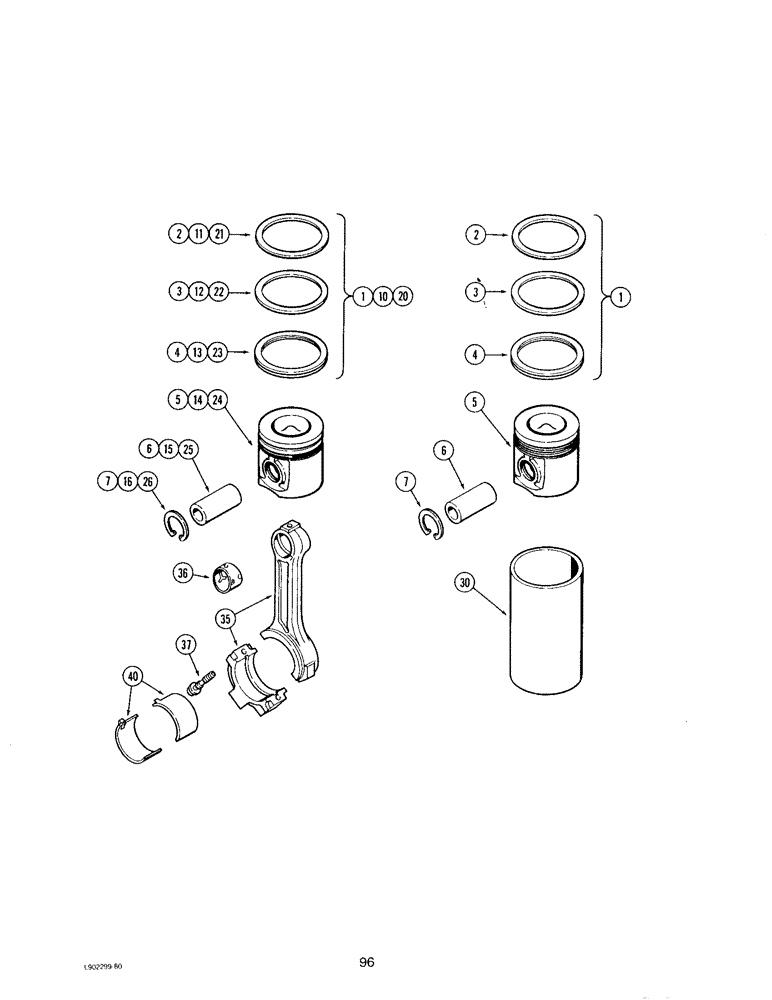

Схема запчастей Case IH 4390 - (096) - PISTONS, 4-390 ENGINE
35
26
24
4
15
37
4
30
16
5
36
14
12
6
40
3
25
21
6
2
7
11
1
7
2
1
5
20
3
13
22
10
23

Артикул

Название

Примечание

Количество

A77410

PISTON

KIT - engine (Standard)

4шт.

1

A77401

PISTON RING SET

RING KIT - piston (Standard)

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine (Standard) (Stamped 6223)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77411

PISTON

KIT - engine (0.5 mm oversize)

4шт.

10

A77463

PISTON RING SET

RING KIT - engine (0.5 mm oversize)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine (0.5 mm oversize) (Stamped 6209)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77412

PISTON

KIT - engine (1.0 mm oversize)

4шт.

20

A77464

PISTON RING SET

RING KIT - engine (1.0 mm oversize)

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine (1.0 mm oversize) (Stamped 6208)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engine block repair) (When liner is installed, use only A77410 Piston Kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new

4шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number, connecting rod (Use this part number to return connecting rod core for credit)

4шт.

35

JR942581

REMAN-CONNECTING ROD

Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

35

84145405R

REMAN-CONNECTING ROD

4390, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569)

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, MJ11 - 1.25 x 59 mm

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, standard)

4шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.25 mm undersize)

4шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod (set, upper and lower, 0.5 mm undersize)

4шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.76 mm undersize)

4шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 1.0 mm undersize)

4шт.

Выбрано товаров: 39
