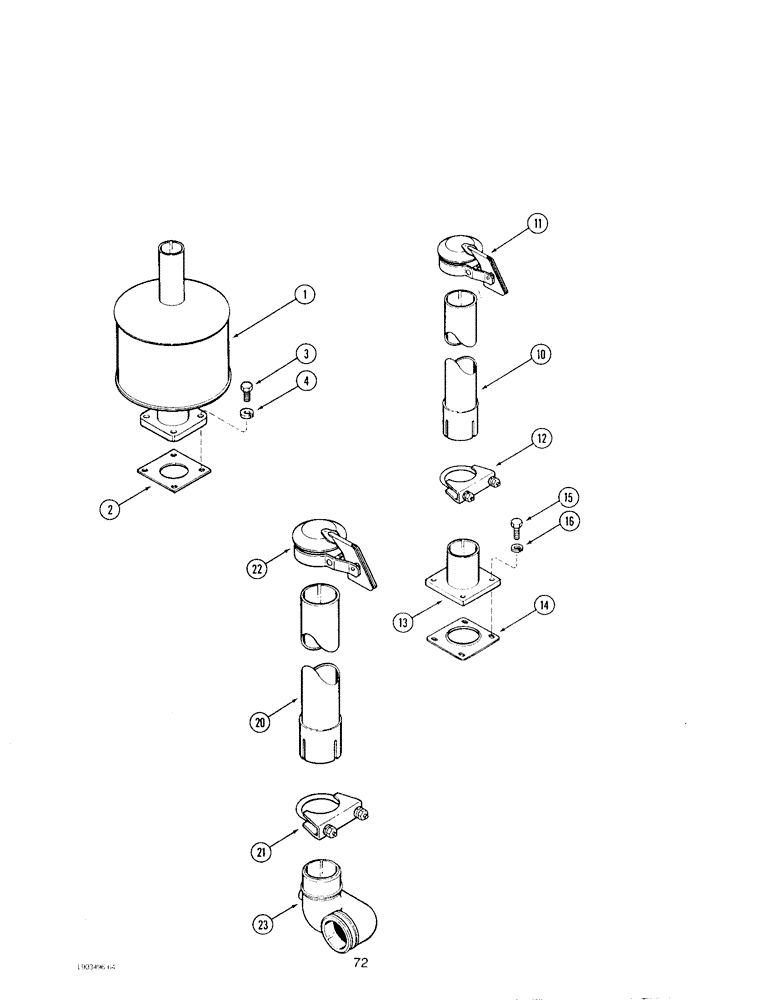

Запчасти Case IH 4390 (072) - EXHAUST SYSTEM, MUFFLER

1

A172785

MUFFLER

- exhaust (Without turbocharger)

1шт.

2

A170151

MANIFOLD GASKET

- exhaust muffler

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

10

ZNL89208A

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

ref #10 for curved exhaust pipe use 115697a1 2.5 ft long. Eliminates rain cap.

1шт.

11

321574R91

PLUG

CAP ASSEMBLY - weather, exhaust pipe

1шт.

12

A13240

CLAMP,2-5/8" ID

ASSEMBLY - exhaust pipe

1шт.

13

L129963

ADAPTER

- exhaust pipe

1шт.

14

J912220

GASKET,0.4mm Thk

- exhaust adapter

1шт.

15

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

20

B500354

PIPE

- exhaust

1шт.

ref# 20 for curved exhaust pipe use 115698a1 3 ft long

1шт.

Eliminates rain cap.

1шт.

21

A176450

CLAMP

ASSEMBLY - pipe, exhaust

1шт.

22

321575R91

CAP

ASSEMBLY - weather, exhaust

1шт.

23

A170987

ELBOW

- exhaust, turbocharger (See page 67)

1шт.
