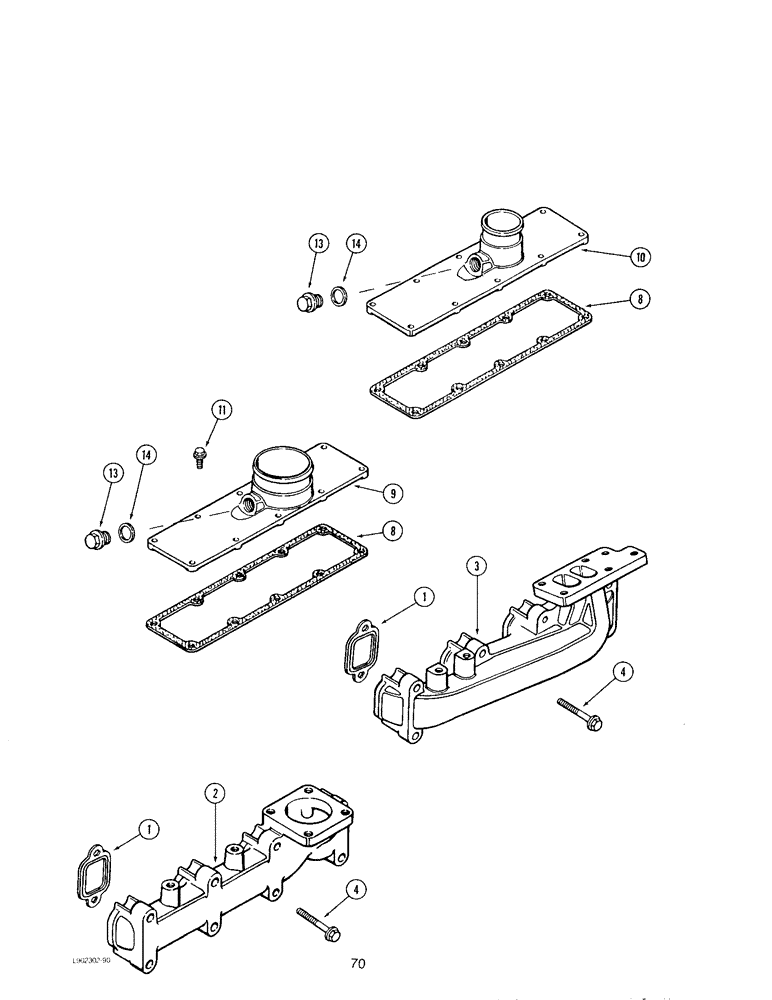

Запчасти Case IH 4390 (070) - MANIFOLDS, EXHAUST, 4-390 AND 4T-390 ENGINES

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901223

MANIFOLD

- exhaust (Natural Aspirated)

1шт.

3

J901919

MANIFOLD

- exhaust (Turbocharged)

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm Grade 10.9

8шт.

8

J914028

GASKET

- intake manifold

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Natural Aspirated)(Order A77415 kit)

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Turbocharged) (Order A77416 kit)

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Mounting, Intake manifold Hex Flg Hd, M8 x 1.25 x 25

10шт.

13

J907185

PLUG

ASSEMBLY - manifold

1шт.

14

J906773

WASHER

- plug sealing

1шт.

A77415

COVER

MANIFOLD KIT - intake (Natural aspirated)(Includes Ref 9

1шт.

13 and 14)

1шт.

A77416

COVER

MANIFOLD KIT - intake (Turbocharged)(Includes Ref 10

1шт.

13 and 14)

1шт.
