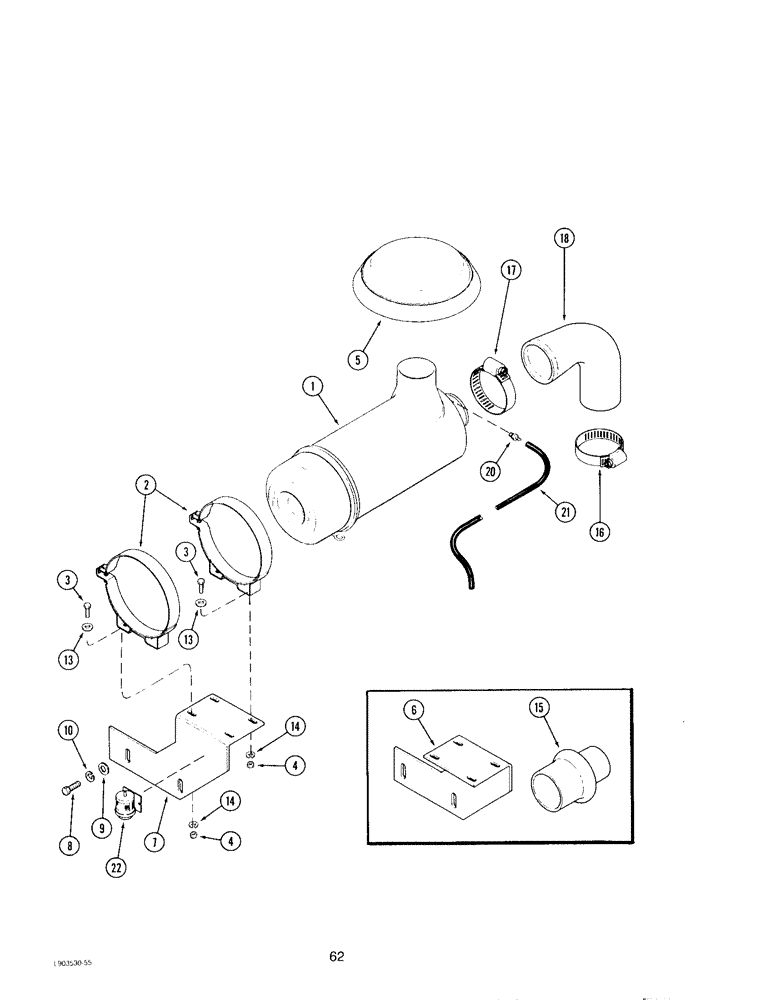

Запчасти Case IH 4390 (062) - AIR INDUCTION SYSTEM

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air (See page 65)

1шт.

2

R24049

BAND

CLAMP - mounting, air cleaner

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

5

A170235

CAP

ASSEMBLY - inlet, air cleaner

1шт.

6

1347666C1

BRACKET

- mounting, air cleaner (With turbocharger) (Replaces 1347668C1)

1шт.

7

1347665C1

BRACKET

- mounting, air cleaner (Without turbocharger) (Replaces 1347667C1)

1шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

13

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

S83126

ADAPTER

HOSE - air, cleaner to turbocharger (Replaces 1347688C1)

1шт.

16

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - hose, 4 to 3-1/16 inch

1шт.

17

214-1564

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm, W/ Liner

CLAMP - hose, 4-1/2 to 3-9/16 inch

1шт.

18

1347687C1

INTAKE AIR HOSE,3.00" ID, 3.50" ID

- Elbow Adapter, Air Cleaner (Without Turbocharger) 3.00" ID, 3.50" ID

1шт.

20

217-208

FITTING

CONNECTOR - hose, air restrictor (Replaces 533916C1)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - air (Order 990015C2 and, Serial Range: cut-lenght)

1шт.

990015C2

HOSE,2.79 mm ID x 7620.00 mm Bulk, SAE J1037 TYPE 2

1шт.

22

533917C1

GAUGE

- restriction, air cleaner

1шт.
