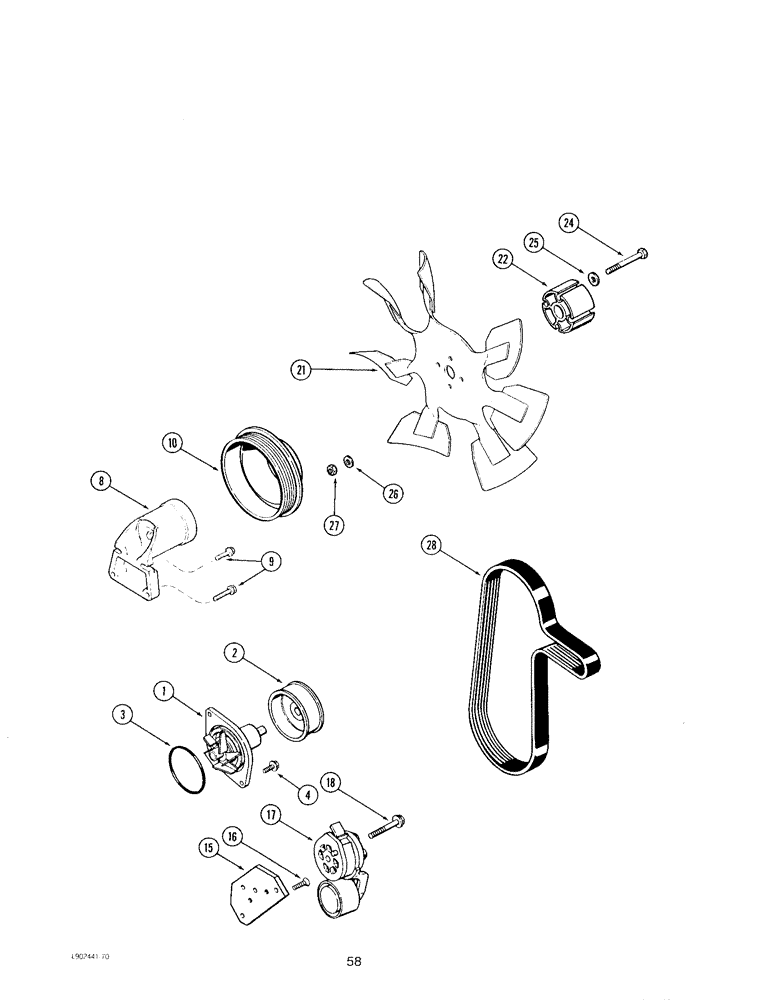

Запчасти Case IH 4390 (058) - WATER PUMP AND FAN, 4-390 AND 4T-390 ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

4390, 4390T

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - water pump (Use this number to pump core for credit)

1шт.

A77703

PUMP, WATER

PUMP KIT - water

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

4390, 4390T, Replaces P/M's A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water, new (Order A77703)

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77703)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J911205

BRACKET

ASSEMBLY - fan

1шт.

Service part for ref #8, are:

1шт.

1 ea. J910739 ball brg.

1шт.

1 ea. J911924 fan hub.

1шт.

1 ea. J907769 bolt. Branko (t/s 27-95C)

1шт.

9

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.

9

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

10

J914462

PULLEY,163mm OD

- fan

1шт.

15

J904548

BRACKET

- mounting, tensioner

1шт.

Ref #15, J904548, Order J925195 for this application. TS225-95C bj

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head hex socket, 8 mm - 1.25 x 25 mm

2шт.

17

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

21

A184467

FAN

- engine

1шт.

22

A184546

SPACER

- fan

1шт.

24

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

4шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

28

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

Fan 3.56 mm W x 1498.60 mm L, 8 Ribs

1шт.
