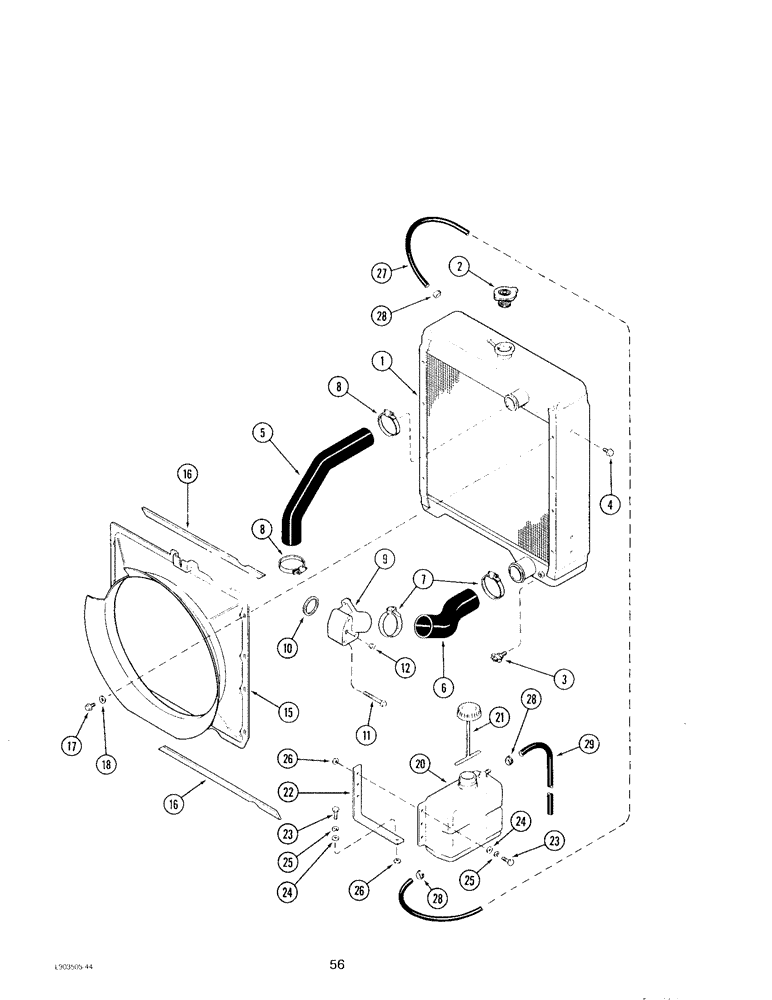

Запчасти Case IH 4390 (056) - RADIATOR AND COOLANT RECOVERY SYSTEM

1

A172038

RADIATOR

- engine coolant

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A23656

COCK, DRAIN

VALVE - drain, 1/4 inch PT

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

4шт.

5

T103198

RADIATOR HOSE,45.00 mm ID x 300.00 mm, SAE J20,SAE 20R4 CLASS D1

Inlet 45.00 mm ID x 300.00 mm, SAE J20,SAE 20R4 CLASS D1

1шт.

6

T103197

RADIATOR HOSE,58.00 mm ID x 250.00 mm, SAE J20,SAE 20R4 CLASS D1

Outlet 58.00 mm ID x 250.00 mm, SAE J20,SAE 20R4 CLASS D1

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adjustable #28, 1.31/2.25 Type F Worm

2шт.

9

J903102

CONNECTION

- water inlet

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - water inlet

1шт.

11

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 75 mm, Grade 10.9

3шт.

12

A77429

PLUG

- hex socket pipe, 1/2-18 PT

1шт.

15

A173459

SHROUD

- fan

1шт.

16

A173165

SEALING STRIP

- fan shroud

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

- flat, 9 x 21 x 2 mm

8шт.

20

A184395

RESERVOIR

CONTAINER - recovery, coolant

1шт.

21

A184079

CAP

- container

1шт.

22

1347681C1

BRACKET

- mounting, container

1шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

24

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

27

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Coolant, Recovery (Cut to fit if required) 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

28

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose, retaining

3шт.

29

1340641C1

HOSE

- overflow, coolant

1шт.
